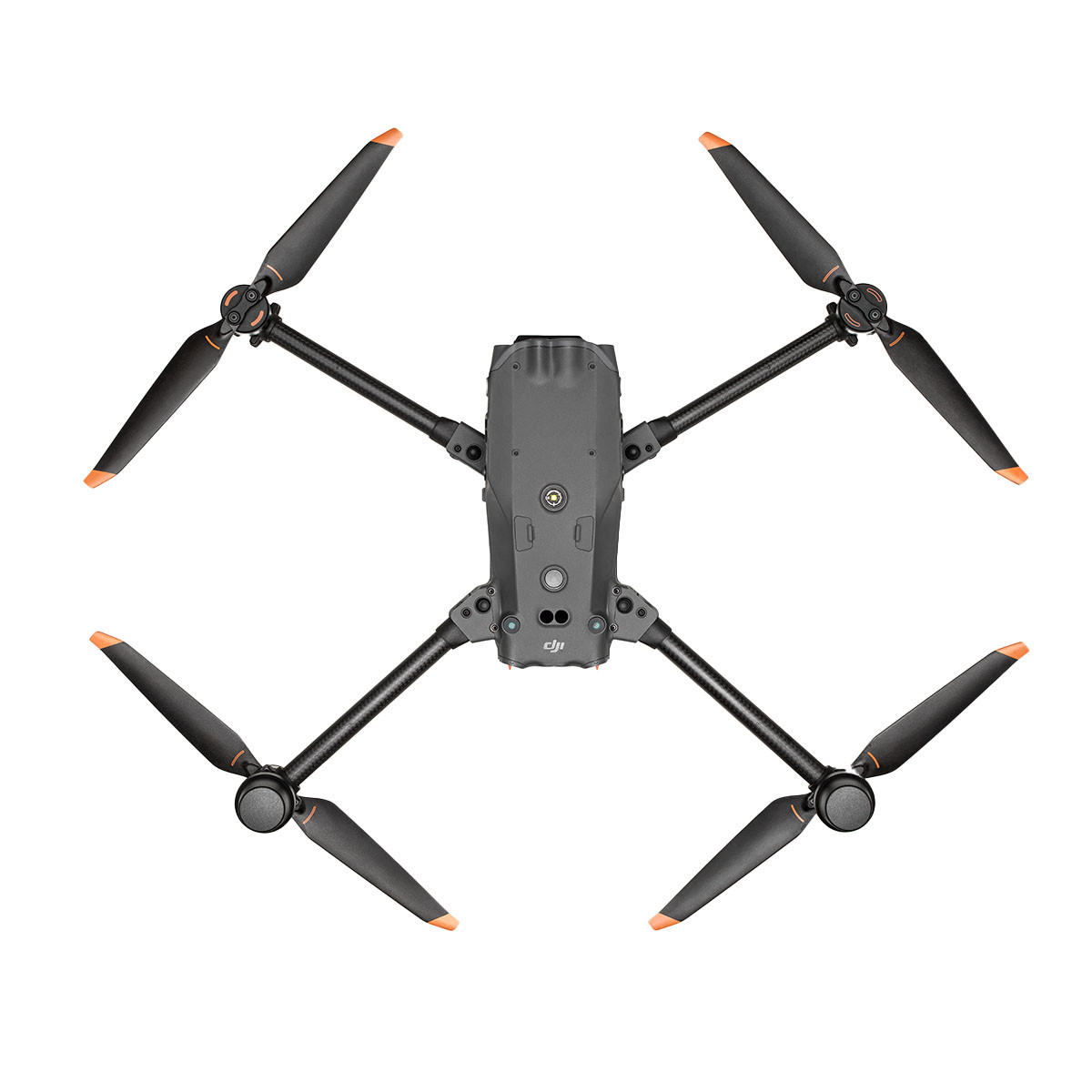

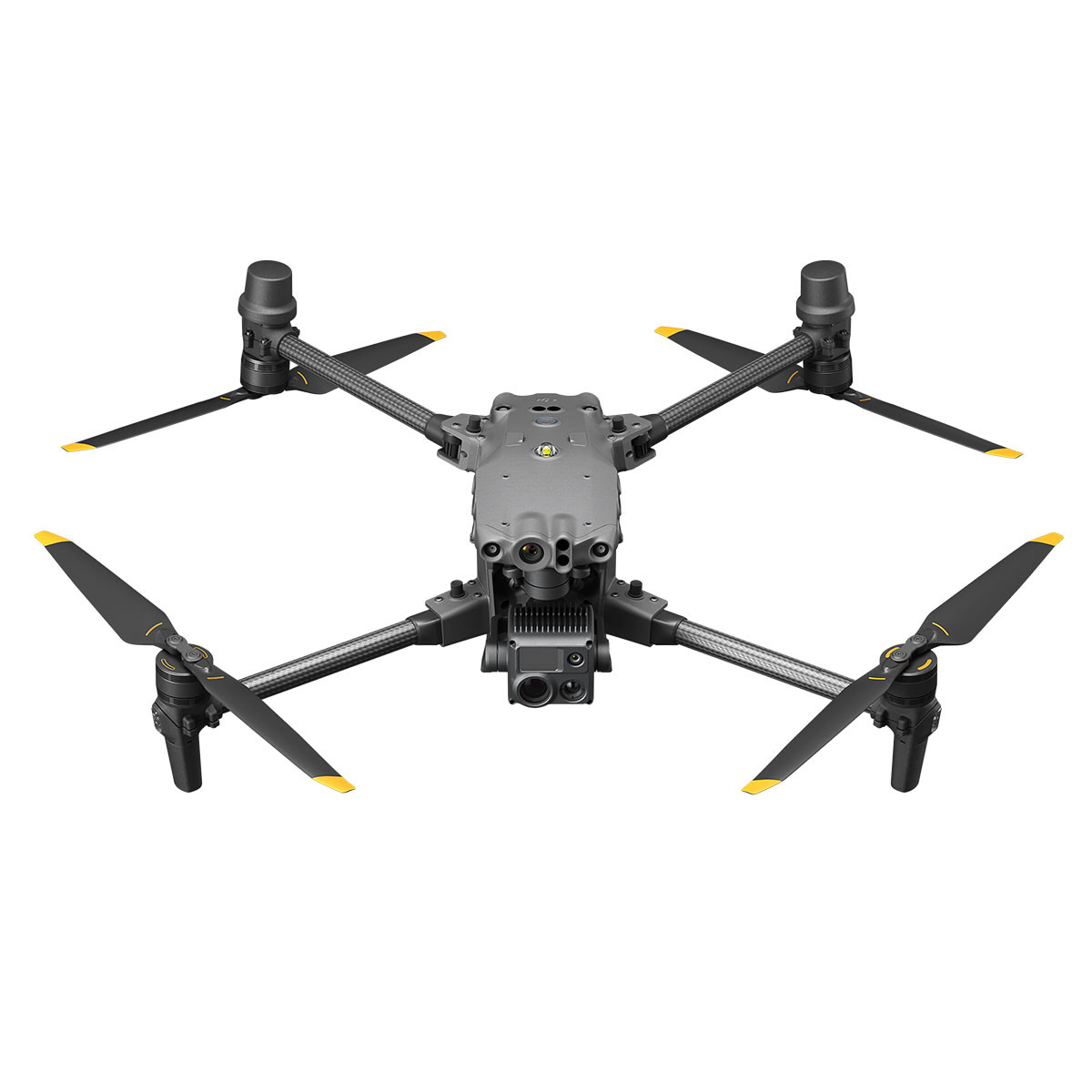

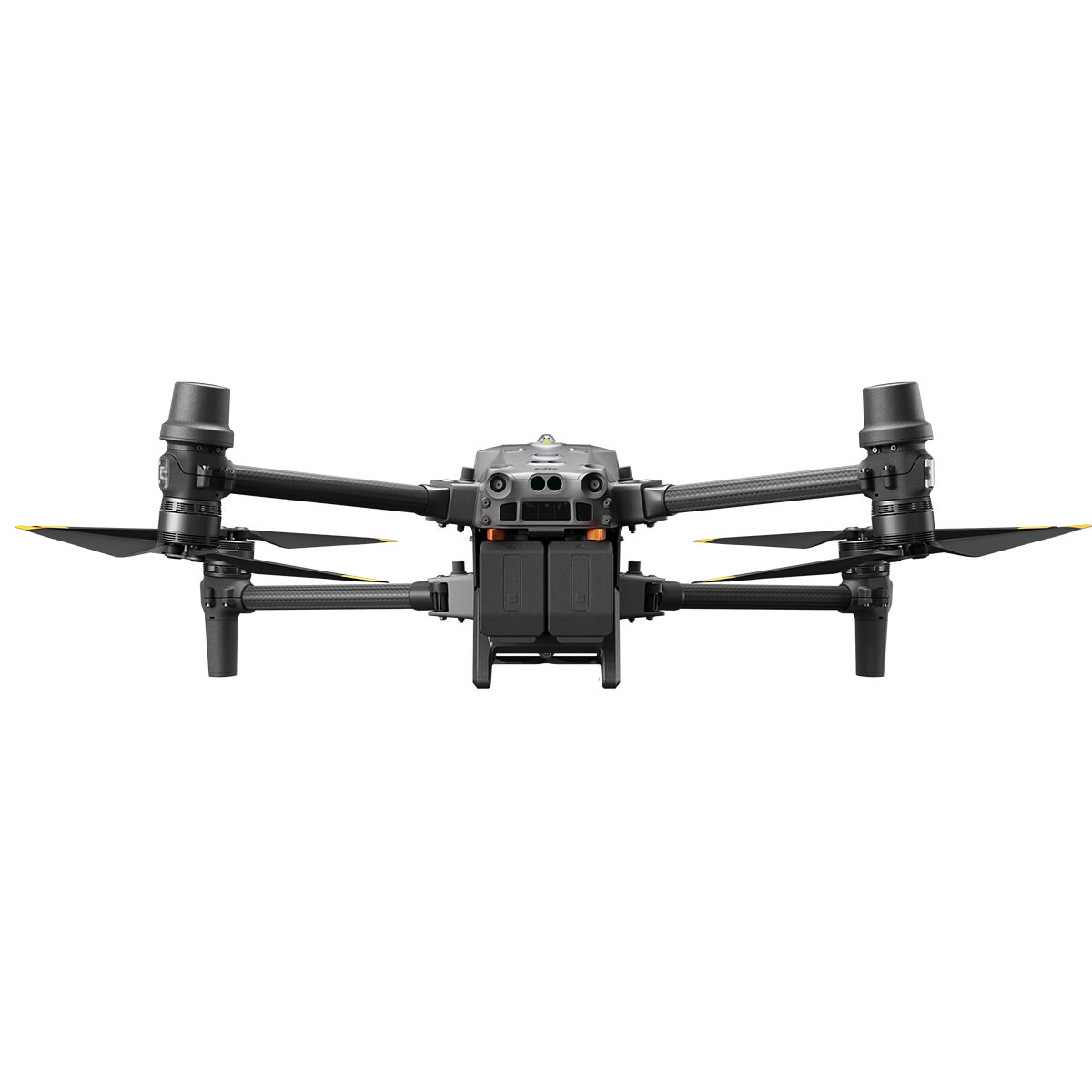

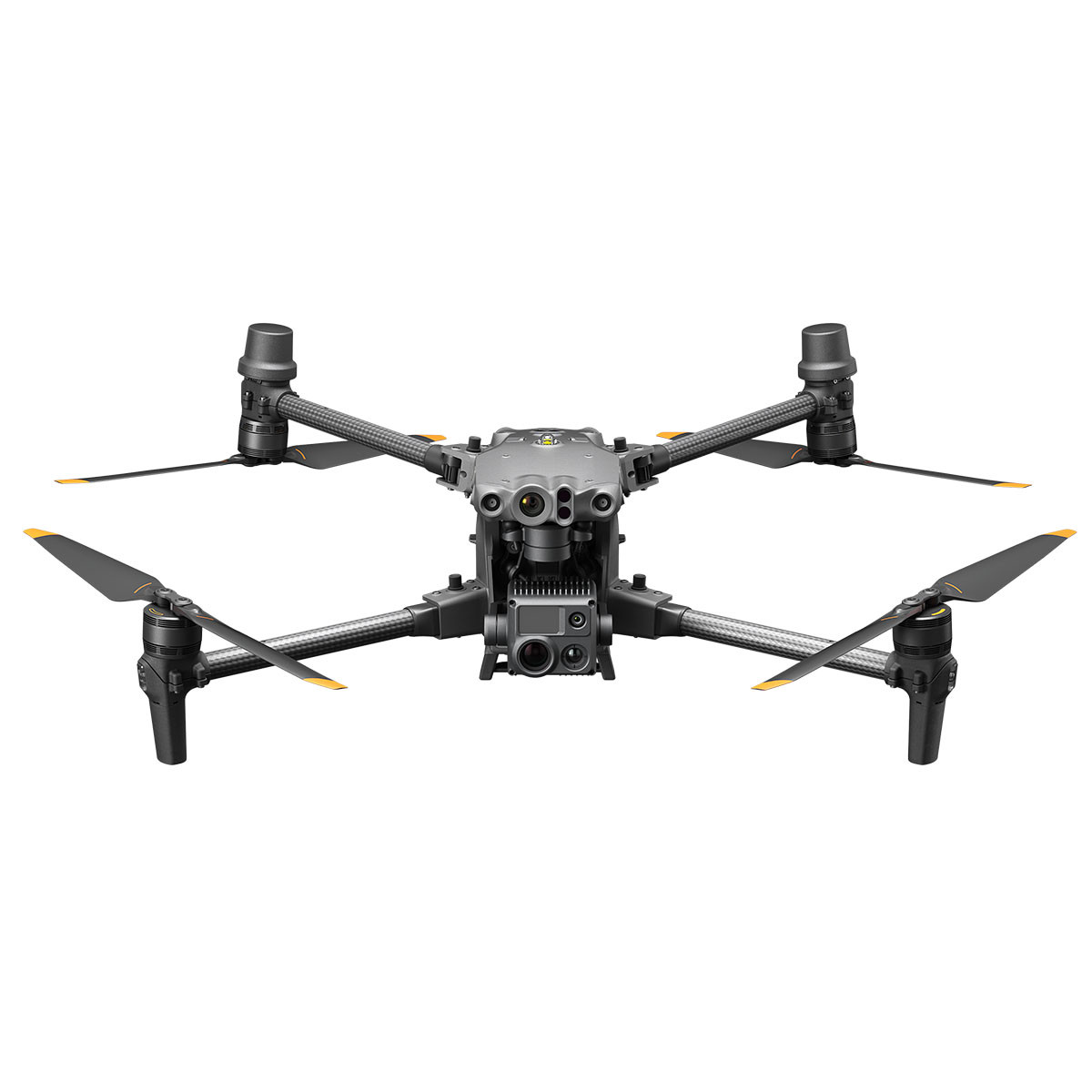

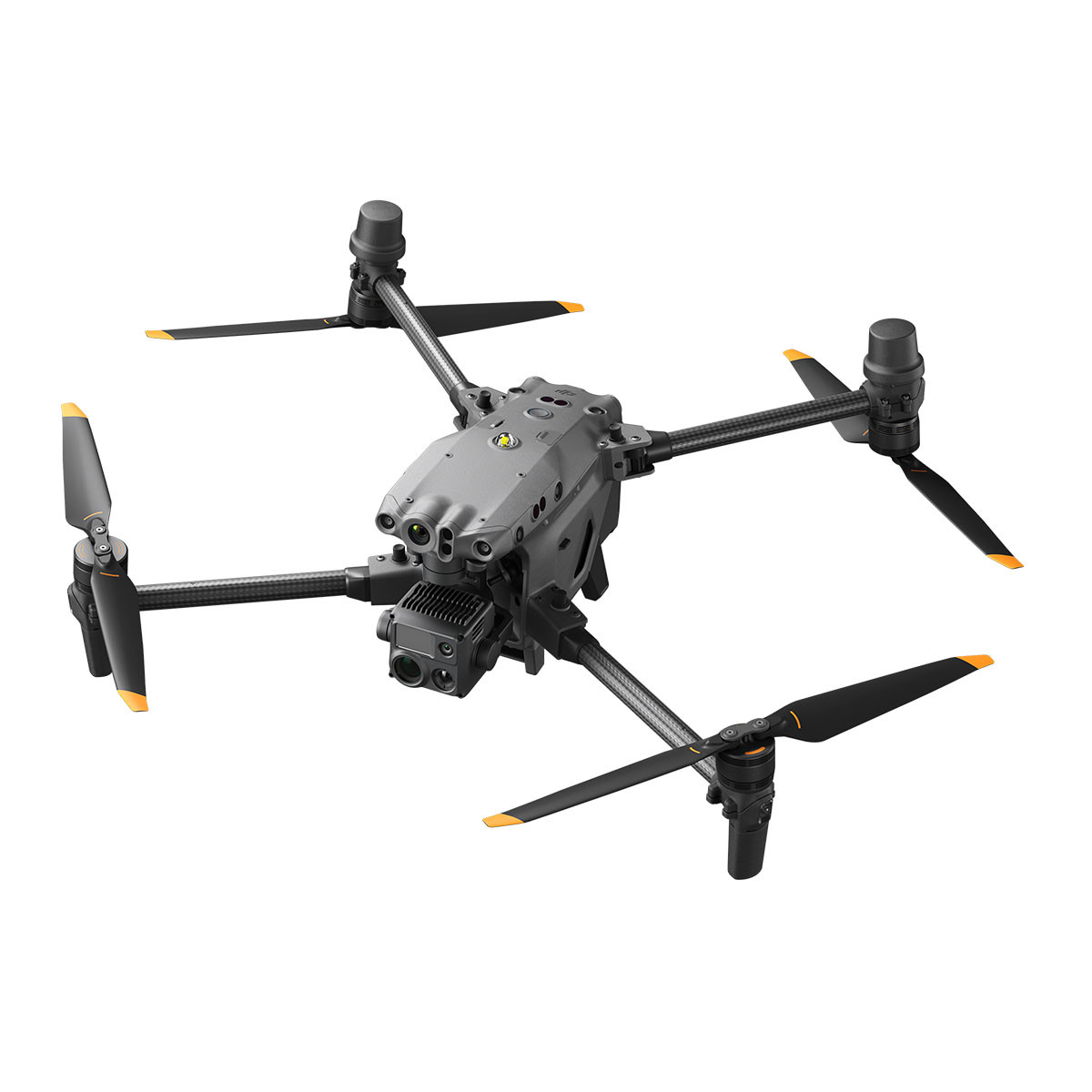

DJI Matrice 30T Thermal Drone
- Thermal Imaging: 640x512 resolution thermal camera for precise heat detection.
- All-Weather Performance: Operates in rain, low light, and extreme temperatures.
- High-Resolution Visual Camera: Captures detailed 48MP imagery and 4K video.
- RTK Support: Centimeter-level accuracy for precise mapping and surveying.
- 41-Minute Flight Time: Extended battery life for longer, uninterrupted missions.
- Laser Rangefinder: Pinpoints targets up to 1,200 meters for precise operations.
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
The DJI Matrice 30T is a powerful and versatile drone designed for industrial, environmental, and public safety applications. Equipped with an advanced thermal camera featuring a 640x512 resolution, the Matrice 30T delivers precise thermal imaging capabilities that are ideal for a wide range of uses. This makes it an excellent tool for animal habitat surveying, where it can track wildlife activity in low light or dense cover without disturbing natural environments. The drone’s thermal camera detects heat signatures from animals, making it invaluable for tracking species, monitoring migration patterns, and assessing the health of wildlife populations.
Its robust design ensures it operates in all weather conditions, including heavy rain, low light, and extreme temperatures. This resilience makes the Matrice 30T especially suitable for operations in harsh environments, where thermal detection is critical for identifying heat sources, finding people, or conducting damage assessments in disaster zones.
The Matrice 30T also features advanced mapping capabilities. With RTK support, it provides centimetre-level accuracy, making it ideal for land surveying, construction inspections, and environmental monitoring. The integration of high-resolution thermal imaging with precise mapping technology enables comprehensive data collection, even in large or complex areas.
Additionally, the Matrice 30T seamlessly integrates with DJI FlightHub 2, DJI's cloud-based management platform. This compatibility allows for efficient fleet management, mission planning, and real-time monitoring of drone operations, enhancing collaboration and operational efficiency.
- Dimensions (unfolded, excl. propellers)470×585×215 mm (L×W×H)
- Dimensions (folded) 365×215×195 mm (L×W×H)
- Diagonal Wheelbase 668 mm
- Weight (incl. two batteries) 3770 ± 10 g
- Max Takeoff Weight 4069 g
- Max Takeoff Weight for C2 Certification in EU 3998 g
- Operation Frequency[1] 2.4000-2.4835 GHz; 5.725-5.850 GHz
- Transmitter Power (EIRP) 2.4 GHz
- Hovering Accuracy (windless or breezy) Vertical
- RTK Positioning Accuracy (fixed RTK enabled) 1 cm+1 ppm (horizontal)
- Max Angular Velocity Pitch
- Max Pitch Angle 35° (N-mode and Forward Vision System enabled
- Max Ascent/Descent Speed 6 m/s, 5 m/s
- Max Tilt Descent Speed 7 m/s
- Max Horizontal Speed 23 m/s
- Max Service Ceiling Above Sea Level (without other payload) 5,000 m (with 1671 propellers)
- Max Wind Resistance 12 m/s
- Max Hover Time [2] 36 min
- Max Flight Time[2] 41 min
- Motor Model 3511
- Propeller Model 1671
- Operating Temperature -20° to 50° C (-4° to 122° F)
- Class C2 (EU)
- ngular Vibration Range ±0.01°
- Controllable Range Pan
- Tilt -120° to +45°
- Pan ±105°
- Roll ±45°
- Zoom Camera Sensor 1/2" CMOS, Effective pixels
- Zoom Camera Lens Focal length
- Zoom Camera Aperture f/2.8-f/4.2
- Zoom Camera Focus 5 m to ∞
- Zoom Camera Exposure Compensation ±3 ev (using 1/3 ev as step length)
- Zoom Camera Electronic Shutter Speed (Auto Mode) Photo
- Zoom Camera Electronic Shutter Speed (Manual Mode)
- Zoom Camera ISO Range 100-25600
- Zoom Camera Max. Video Resolution 3840×2160
- Zoom Camera Max Photo Size 8000×6000
- Wide Camera Sensor 1/2" CMOS, Effective pixels
- Wide Camera Lens DFOV
- Wide Camera Lens Focal length 4.5 mm (equivalent
- Wide Camera Lens Aperture f/2.8
- Wide Camera Lens Focus 1 m to ∞
- Wide Camera Lens Exposure Compensation ±3 ev (using 1/3 ev as step length)
- Wide Camera Electronic Shutter Speed (Auto Mode) Photo
- Wide Camera Electronic Shutter Speed (Manual Mode) Photo
- Wide Camera Video 1/8000-1/30 s
- Wide Camera ISO Range 100-25600
- Wide Camera Max. Video Resolution 3840×2160
- Wide Camera Photo Size 4000×3000
- Thermal Camera Uncooled VOx Microbolometer
- Thermal Lens DFOV
- Thermal Focal length 9.1 mm (equivalent
- Thermal Aperture f/1.0
- Thermal Focus 5 m to ∞
- Noise Equivalent Temperature Difference (NETD) ≤50 [email protected]
- Infrared Temperature Measurement Accuracy[4] ±2°C or ±2% (using the larger value)
- Thermal Video Resolution (Infrared Image Super-resolution Mode) 1280×1024
- Thermal Video Resolution (Normal Mode) 640×512
- Photo Size (Infrared Image Super-resolution Mode) 1280×1024
- Photo Siz (Normal Mode) 640×512
- Pixel Pitch 12 um
- Temperature Measurement Method Spot Meter, Area Measurement
- Temperature Measurement Range High Gain Mode
- Low Gain Mode 0° to 500° C (32° to 932° F)
- Palette White Hot/Black Hot/Tint/Iron Red/Hot
- Laser Module Wavelength 905 nm
- Max Laser Power 3.5 mW
- Single Pulse Width 6 ns
- Measurement Accuracy ± (0.2 m + D×0.15%)
- Measuring Range 3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)
- Safety Regulation Level Class 1M
- Accessible Emission Limit (AEL) 304.8 nJ
- Reference Aperture 18mm length, 18mm width (20.3mm diameter if equivalent to circular)
- Max Laser Pulse Emission Power Within 5 Nanoseconds 60.96 W
- Thermal Imaging: 640x512 resolution thermal camera for precise heat detection.
- All-Weather Performance: Operates in rain, low light, and extreme temperatures.
- High-Resolution Visual Camera: Captures detailed 48MP imagery and 4K video.
- RTK Support: Centimeter-level accuracy for precise mapping and surveying.
- 41-Minute Flight Time: Extended battery life for longer, uninterrupted missions.
- Laser Rangefinder: Pinpoints targets up to 1,200 meters for precise operations.
- DJI FlightHub 2 Integration: Streamlines fleet management, mission planning, and real-time data sharing.
- Compact and Foldable Design: Portable for easy deployment in the field.
- Wide Operating Temperature Range: Performs reliably in temperatures from -20°C to 50°C.
- Hybrid Zoom: Combines up to 200x zoom for detailed inspections at a distance.
- 1x Matrice 30 Thermal Drone
- 2x TB30 Intelligent Flight Batteries
- 1x BS30 Battery Station
- 1x RC Plus Remote Controller
- 1x 1-Year Auto-Activated Basic Care Plan
