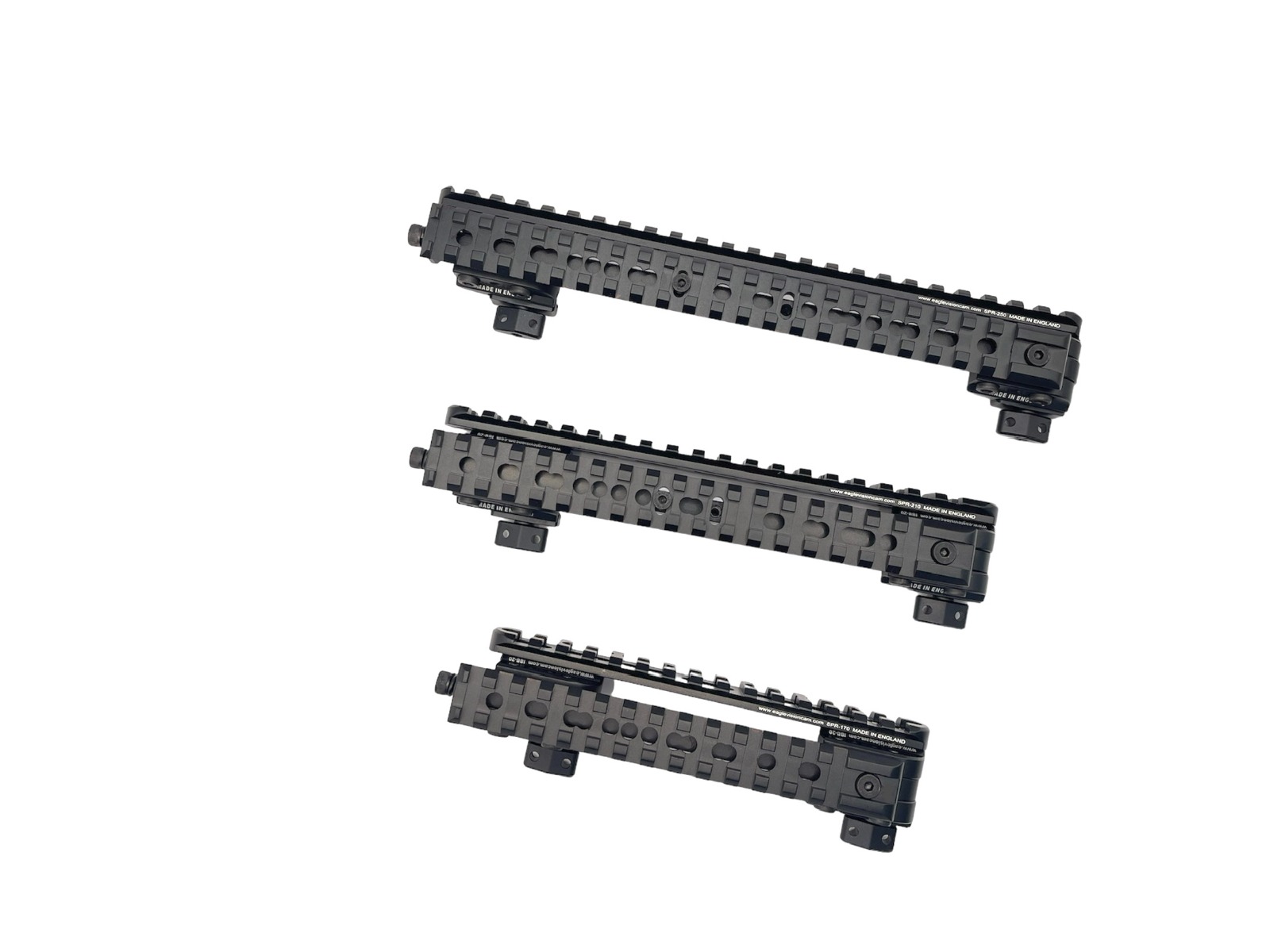

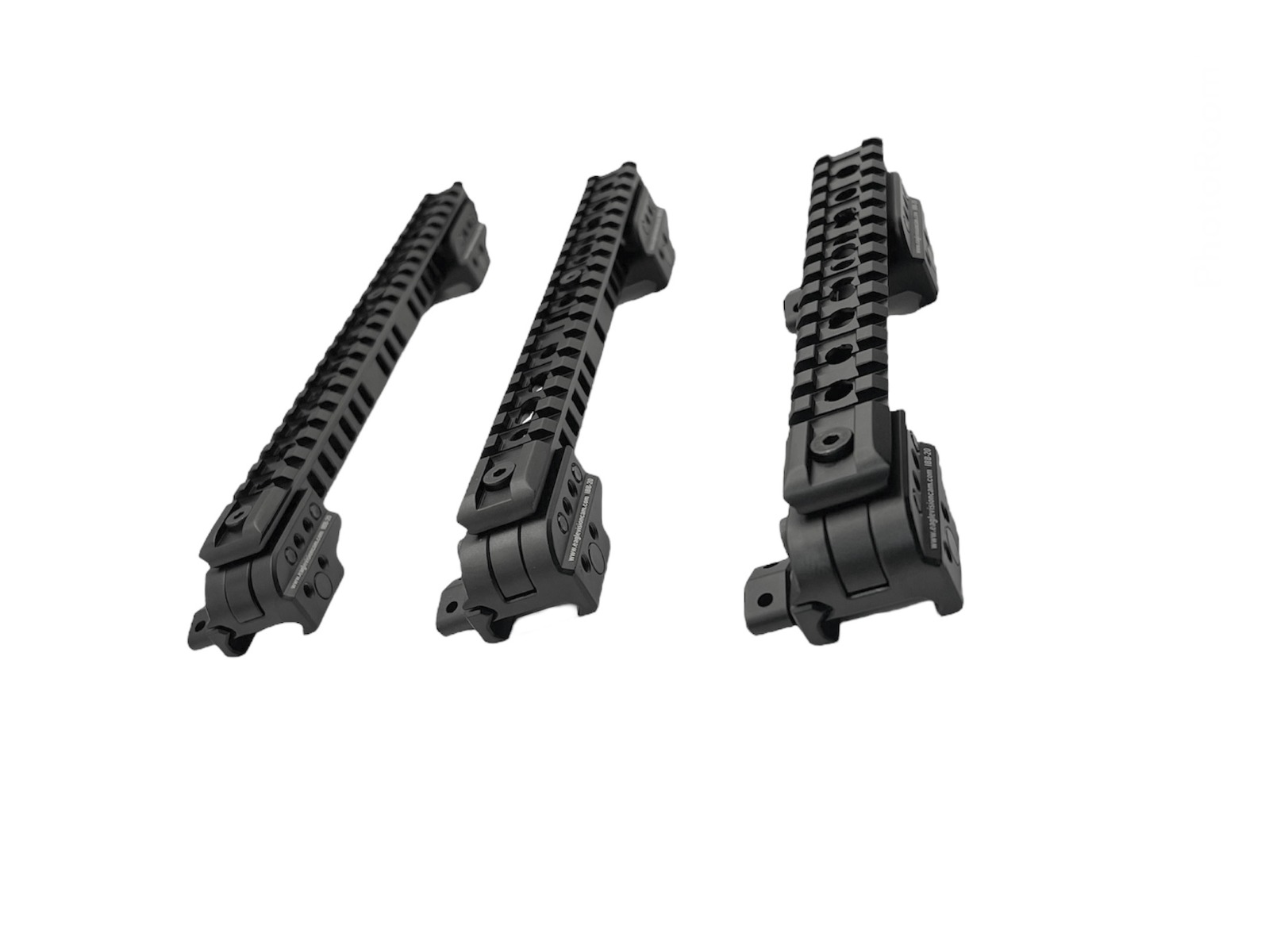

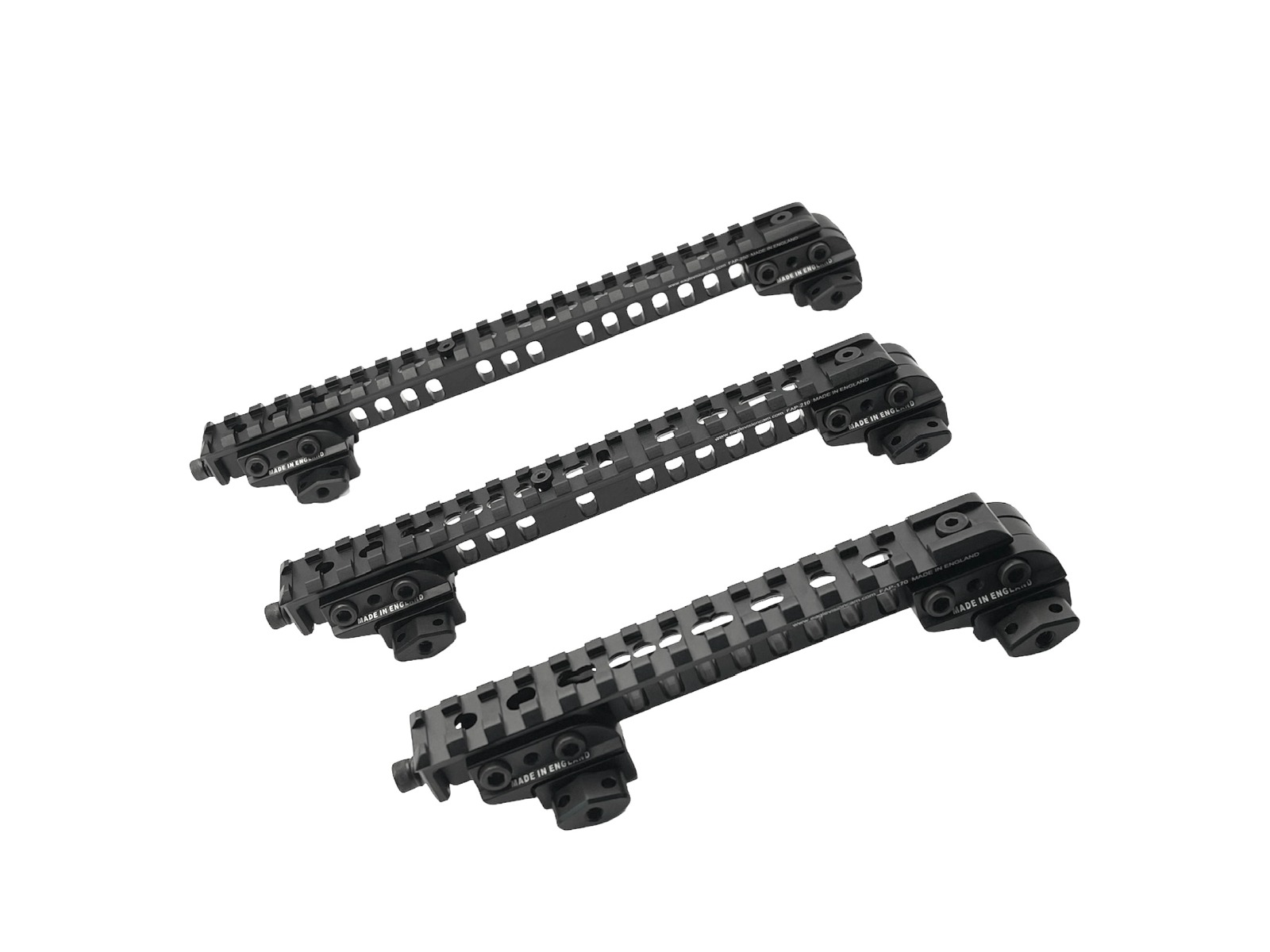

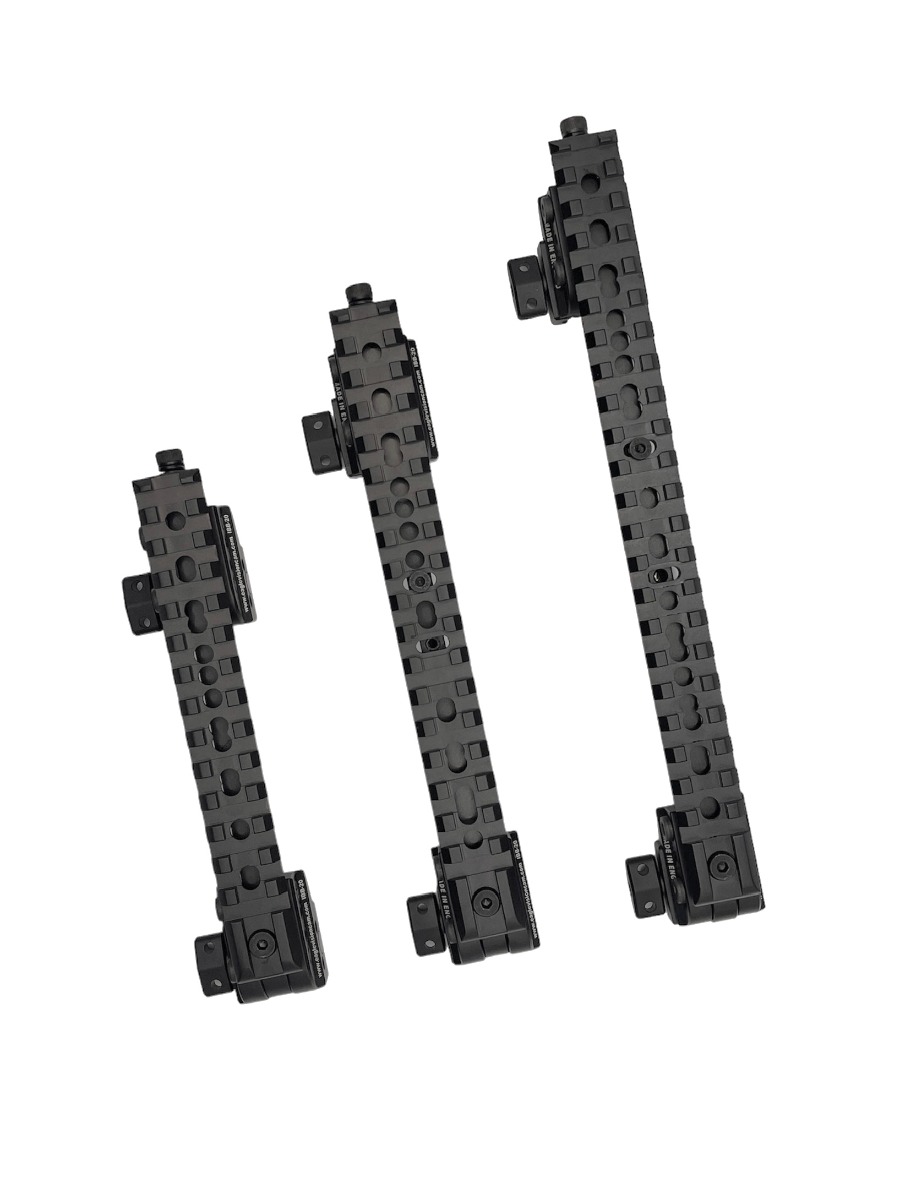

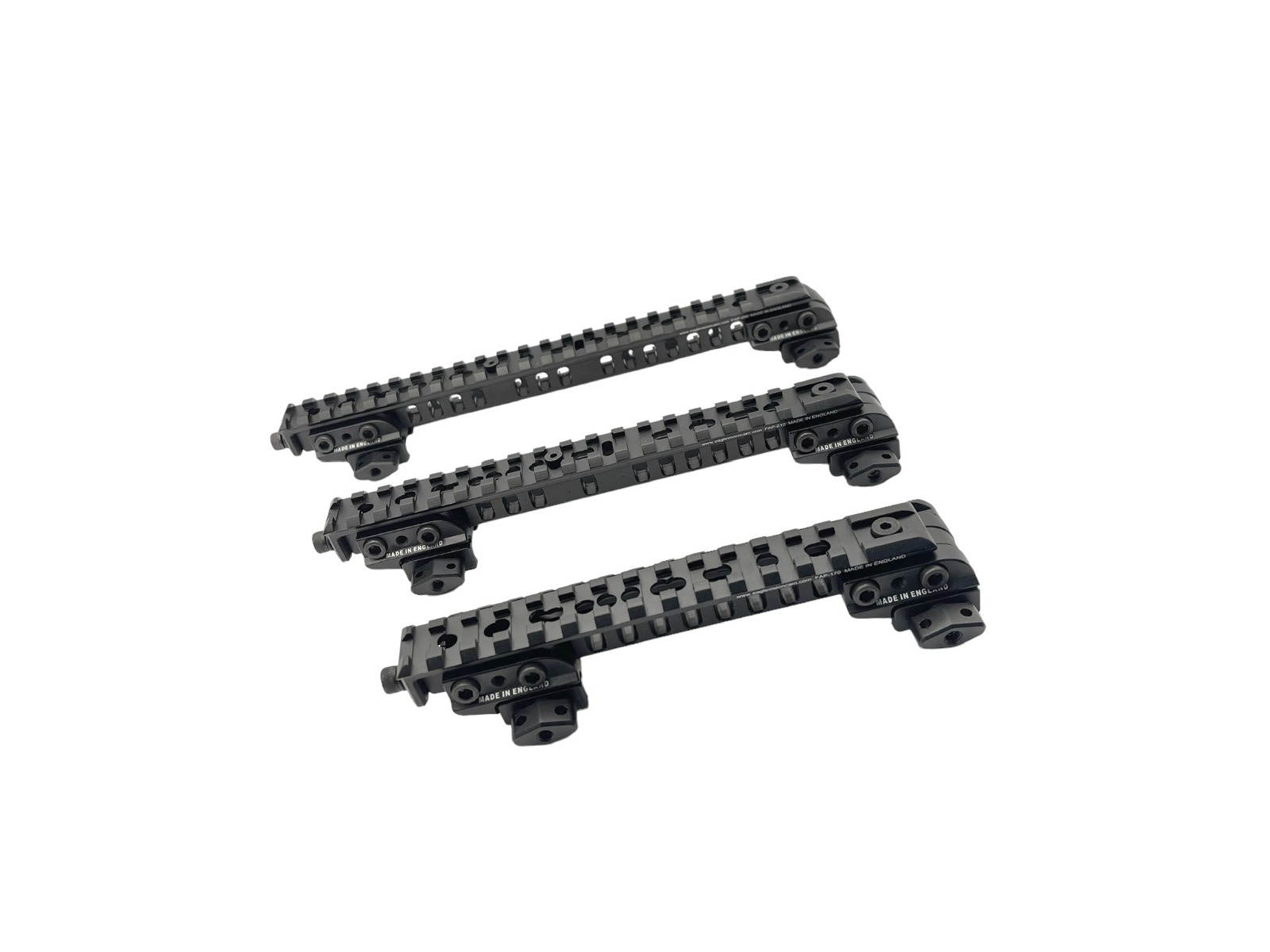

Eagle Vision 250mm Fully Adjustable 108 MOA Picatinny Mount (Suitable for Sytong and PARD)
Measuring 250mm in length, the Eagle Vision 250mm Backward 108 MOA Windage Fully adjustable Picatinny mount is constructed from high-quality materials to ensure long-lasting durability and superior performance. The backward design of the mount allows for a greater range of eye relief, making it easier to achieve a comfortable shooting position while maintaining optimal accuracy.
The 108 MOA windage adjustment allows for precise fine-tuning of the scope's windage settings, enabling shooters to compensate for even the slightest shifts in the wind. This level of adjustability is crucial for achieving consistently accurate shots at long distances.
Please note: The washers must be placed between the screws and the mount. The washers are flat and once they start being tightened their shape adjusts to the countersunk holes.
Torque Calculation:
Adjustable side screws maximum torque, 53-71 inch-pound force to 6-8 NM Newton Meters.
Picatinny nuts maximum torque, 53-71 inch-pound force to 6-8 NM Newton Meters.
- Length: 250mm
- Profile height from bottom of the mount to middle of the top picatinny rail: 21.5mm
- Total height: 30.50mm
- Adjustable Height: 4.5mm
- Weight: 250mm 195 grams without side rail 250 grams with side rail
Compatibility:
This mount can be directly fitted onto the Sytong HT-60/ HT-60 LRF Night Vision Rifle Scope, and the PARD NV800/LRF/, NV008S/LRF, SA32, SA62, SU Series.
Distance between the base bracket can be adjusted.
Adjustability:
FULLY ADJUSTABLE, ELEVATION, WINDAGE, EYE RELIEF AND HEIGHT ADJUSTMENT, that allows the scope to move vertically and horizontally along a guided path, and lockable in different positions.
Combined with Scope Cam:
This mount allows users to adjust their scope forward, backwards, or adjust it vertically to align the scope with their eye relief or eye level.
Users wishing to use their scope camera and record a session while shouldering their rifle, but the screen needs to be further to their eyes, or, for some applications they might require the camera to be closer to the eyes, such as pard/ Nightvision scopes etc.
Longer Range Shooting:
Long range before running out of adjustment on the turrets is the ability for users who need to reach out further but are restricted by their current mounting system.
By keeping the front mount at it’s lowest and elevating the rear mount to the highest point you can zero in your gun far beyond, without using the clicks on your turrets, hence keeping the optical centre of your scope intact.
Multiple Rifles:
This system can be used to install scope mounts for the owner’s of multiple rifles who require to use one scope for all of their rigs by installing one Infinity mount to each rifle.
They can zero then just swap the scope between them, with little need for turret click adjustment.
Durability:
This product is robust enough to be installed on heavy recoil rifles, up to 25 caliber firearm.
- 3x Allen keys, (two different sizes)
- 2x Side screws
- 1x M5 spring screws
- 4x M5 Sytong attachment screws
- 1x Waterproof case
- 6x Aluminium washers M6 to M5 adapter for Sytong and Pard NV008 NV008 LRF
- 1x Lens Air Pump Dust Blower
