Optisan Optics EVX G2 6-24x50 F1 FFP Non Illuminated F1MOA24 Side Focus Rifle Scope
- 6-24x50 FFP versatile magnficationÂ
- First focal planeÂ
- Non Illuminated
- F1 MOA 24x
- 1/4 MOAÂ
- Side Focus : 10 yards
- Robust 30mm tubeÂ
Brand new to the Optisan range of optics is highly anticipated Optisan EVX G2 6-24x50 F1 MOA , this eagerly awaited replacement for the discontinued EVX G1 has finally arrived. The Optisan EVX G2 6-24x50 F1 comes with a first focal plane MOA based non illuminated MOA24 reticle. This simple yet effective reticle features a series of hash marks from the center cross that are marked from 8 MOA to 24 MOA and are in 2 MOA spacings. These hold over points are there to offer quick hold points for windage calls and windage hold offs. Small MOA dots start from the 2 MOA hash mark and move out across the windage in 2 MOA increments in a XMAS tree fashion until reaching the 16 MOA hash marking on the elevation.
The Optisan EVX G2 6-24x50 F1 has a 30mm tube that provides 52 MOA of internal adjustment (we would suggest adding a MOA rail or MOA rings for best optical performance) and 1/4 MOA turrets which are lockable ensuring the user cannot accidententally knock these in the field or while transporting their firearm. The Optisan EVX G2 6-24x50 FFP has an improved optical system which helps provide the shooter with better optical clarity and resolution. This versatile rifle scope is perfect for air rifle shooters and centerfire shooters; its an ideal choice for a HFT shooter but also a great choice for a shooter looking to come in at a budget in the rimfire PRL league.
| OPTICAL DATA | |
|---|---|
| Magnification (High) | 24X ± 5% |
| Magnification (Low) | 6X ± 5% |
| Objective Diameter (mm) | 50mm |
| Outer dia. Objective (mm) | 58mm |
| FOV (min.mag）(ft/100yds) | 19.4 |
| FOV (max.mag）(ft/100yds) | 4.9 |
| Eye relief (in) | 3.8'' - 3.5'' |
| Exit Pupil (Max mag.） (mm) | 2.1mm |
| Exit Pupil (min. mag.） (mm) | 8.3mm |
| Diopter Range (dpt) | +/- 2.0 |
| Parallax Adjustment | 10 yds - infinity (pa free at 100yds) |
| Coating | Fully multi-coated |
| MECHANICAL DATA | |
| Tube Construction | One-piece tube, aircraft aluminum |
| Elevation Adjustment (value per click) | 1/4 moa |
| Windage Adjustment (value per click) | 1/4 moa |
| Turret Style (Elevation) | Lockable Target Turret |
| Turret Style (Windage) | Lockable Target Turret |
| Travel Per Rotation | 20 moa |
| Elevation adj. range | >= 52 moa |
| Windage adj. range | >= 47 moa |
| Eye Piece Diameter (in) | 1.73'' |
| Eye Piece Diameter (mm) | 44mm |
| Eye Piece Length (in) | 2.15'' |
| Eye Piece Length (mm) | 51.2mm |
| Mounting Length rear (mm) | 57.5mm |
| Mounting Length front (mm) | 56.5mm |
| Tube Dia. (mm) | 30mm |
| Length (in) | 14.33'' |
| Length (mm) | 364mm |
| Weight (g) | 802 |
| Weight (oz) | 28.28 |
| Surface Finish | Matte Black |
| ENVIRONMENT DATA | |
| Functional temperature | -20 ~ 50 degree celcius |
| Storage temperature | -20 ~ 50 degree celcius |
| Submersion tightness | JIS 7 |
| RETICLE DATA | |
| Reticle | F1MOA24 |
| Calibrated Ranging Power | Not applicable |
| Focal plane | FFP |
| Illumination | Non-illuminated |
| DELIVERY INCLUDE | |
| Standard Accessories | Lens covers, blank elevation turret dial, 3'' sunshade, speed lever. |
- 6-24x50 FFP versatile magnfication
- First focal plane
- Non Illuminated
- F1 MOA 24x
- 1/4 MOA
- Side Focus : 10 yards
- Robust 30mm tube
The F1MOA24 reticle is an all-round MOA based reticle designed for precision ranging at all magnifications with uncluttered view and fine windage correction reference marks.

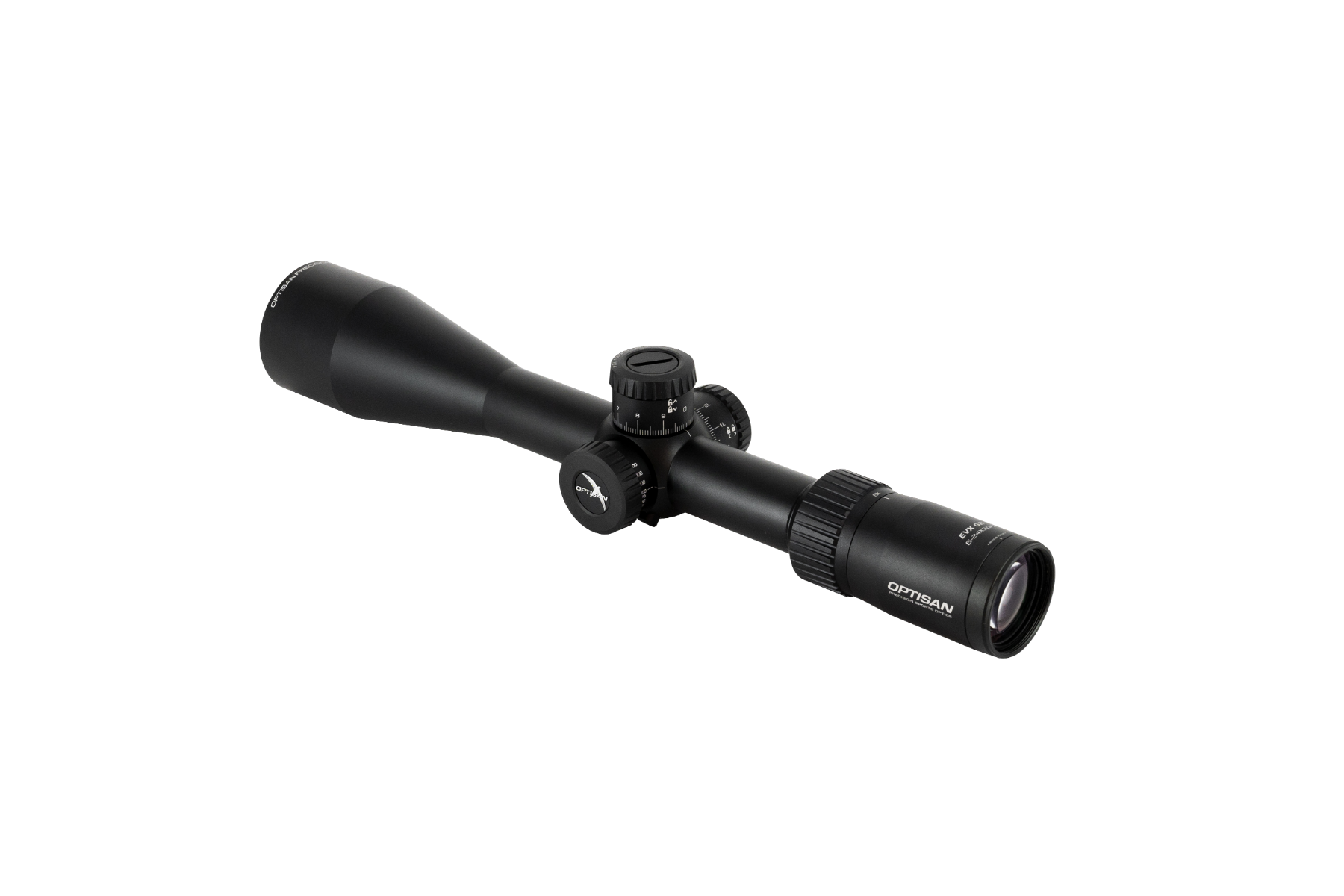

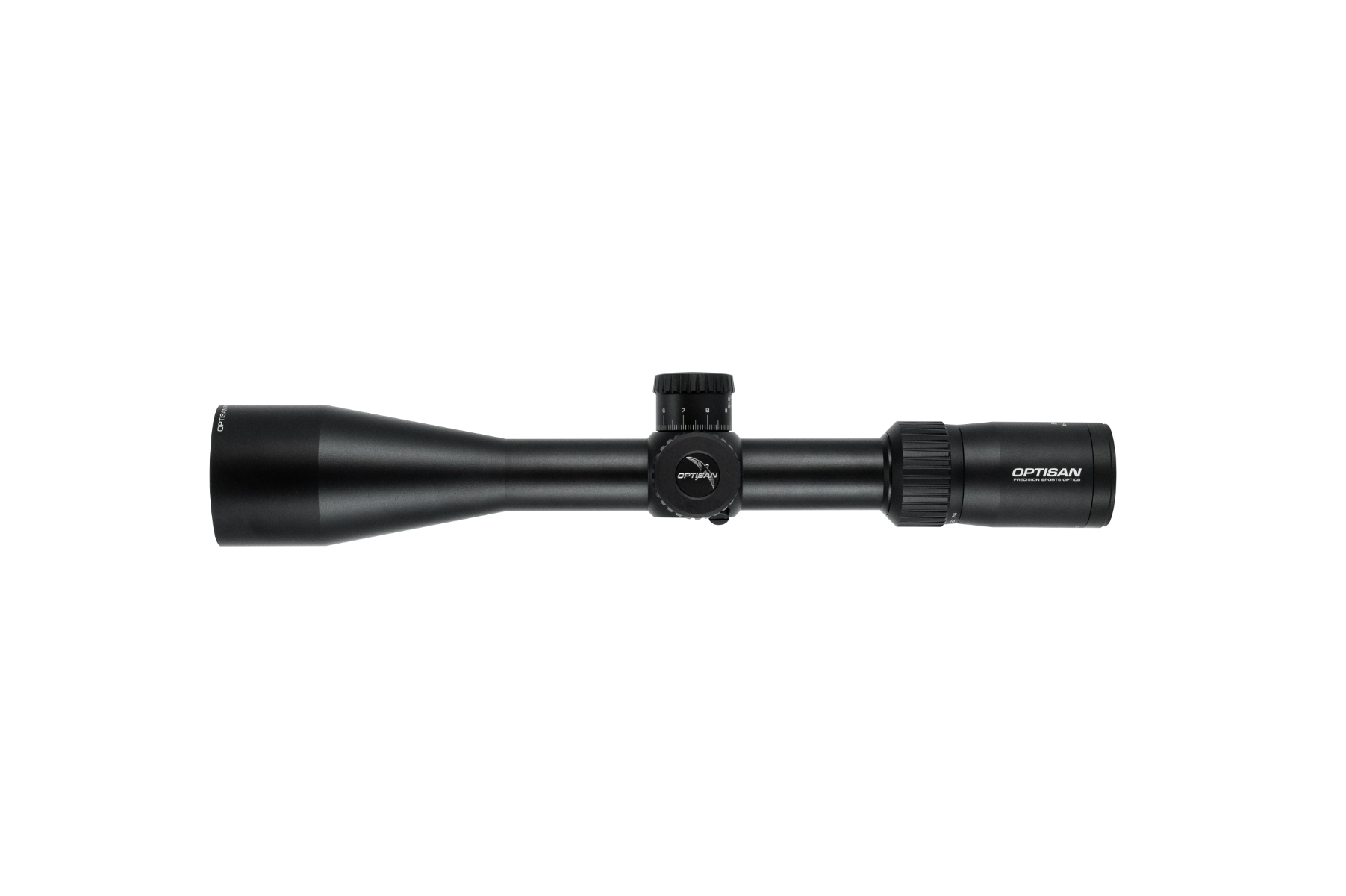

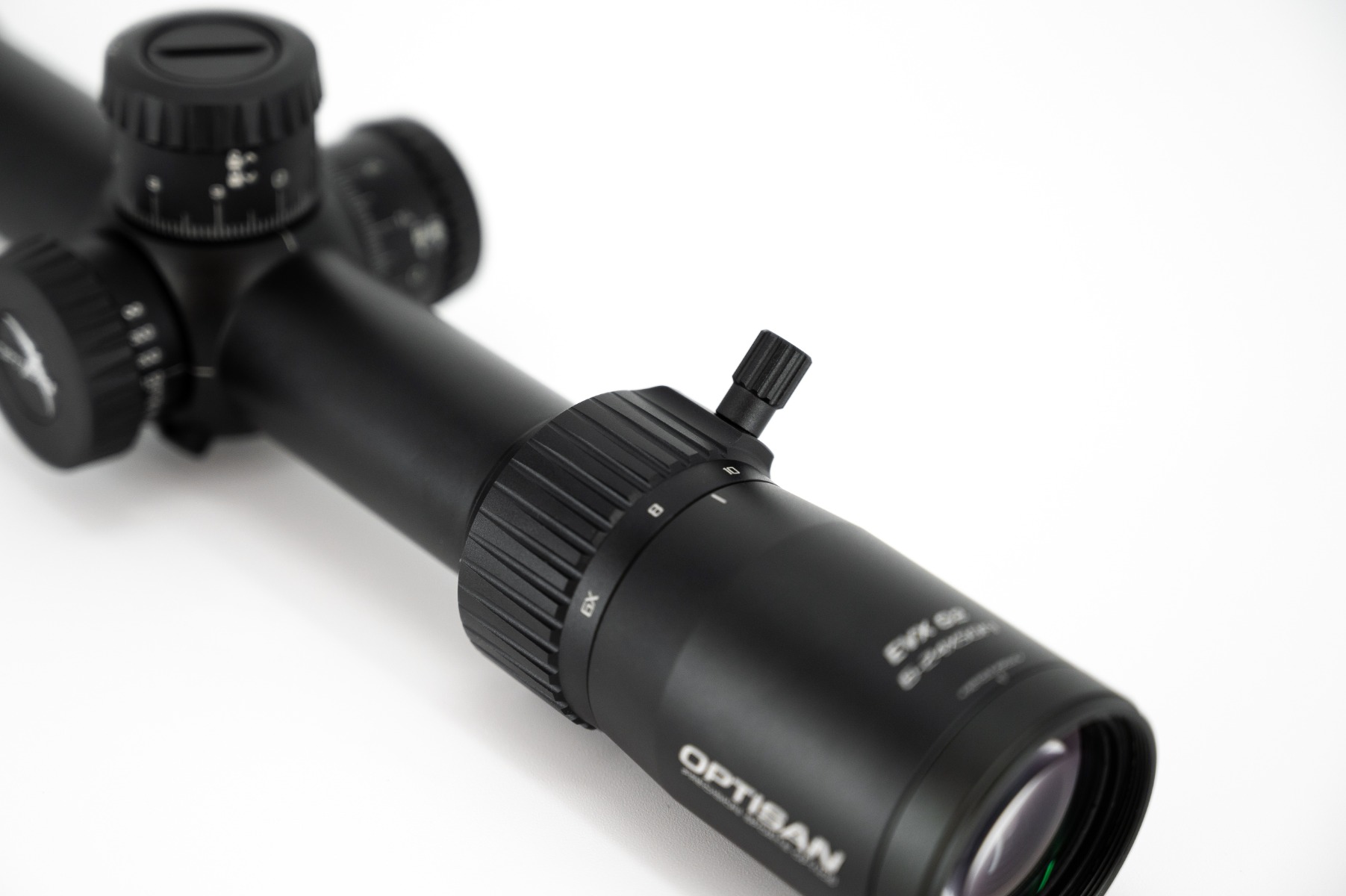

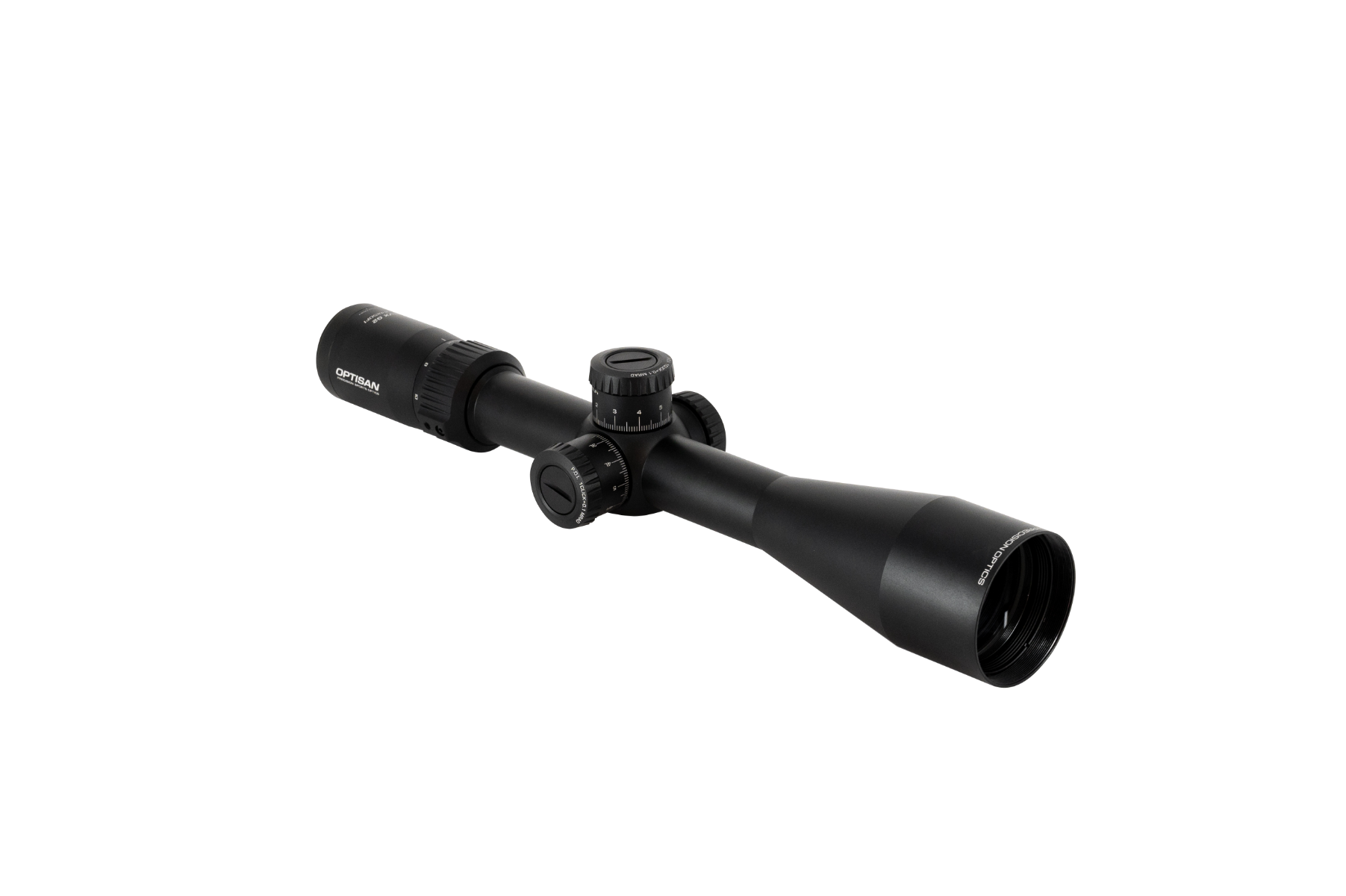

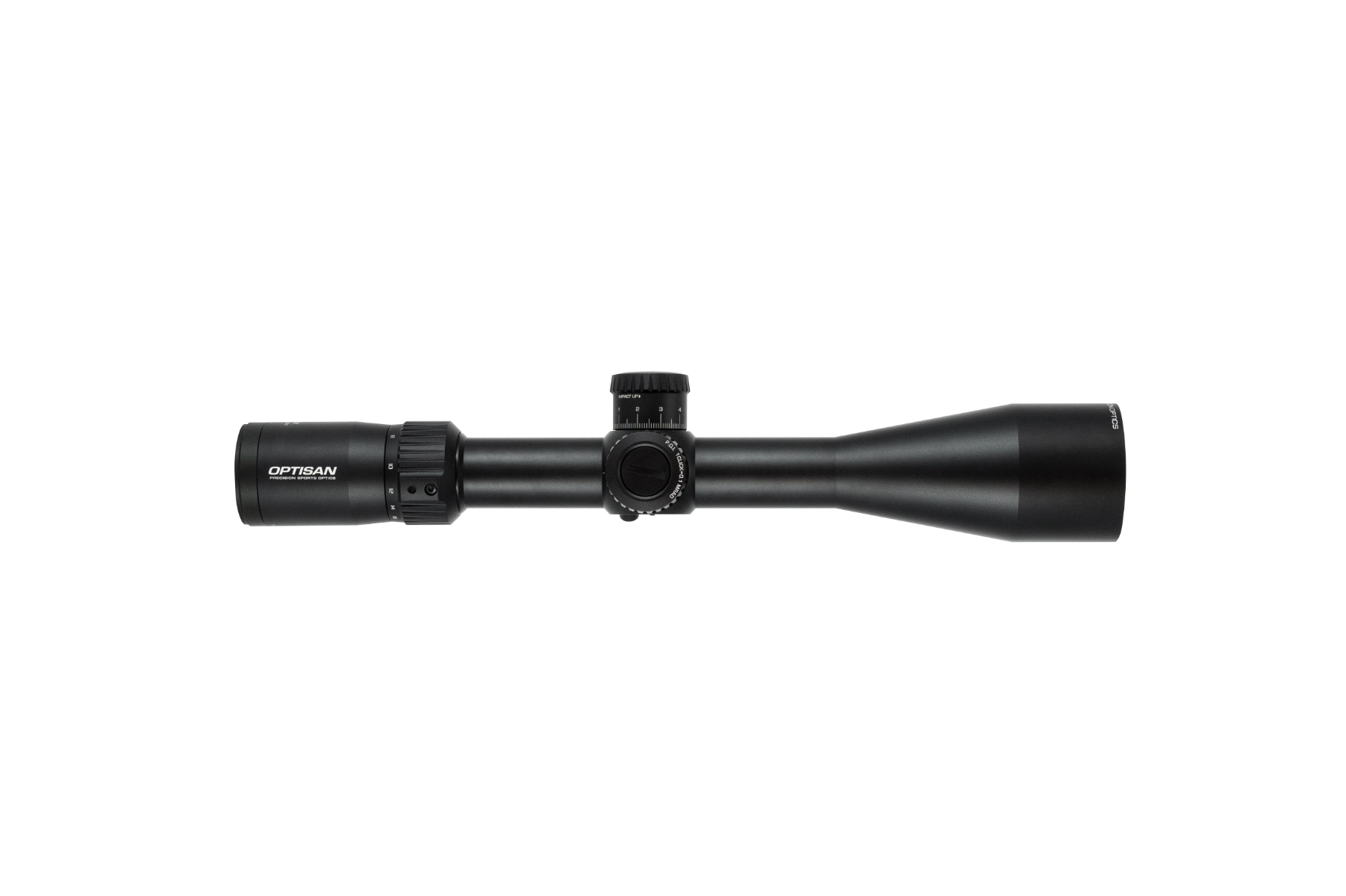

Optisan Optics EVX G2 6-24x50 F1 (F1MOA24) Non-Illuminated Rifle Scope.
- 10 year warranty
