The graphic shows how the reticle looks at 12x, subtensions remain constant at all magnifications. On the upright corner is the blow-up graphic of the centre of the reticle. The overall reticle image will vary with changes in magnification.
SKU#04005 Optisan Optics

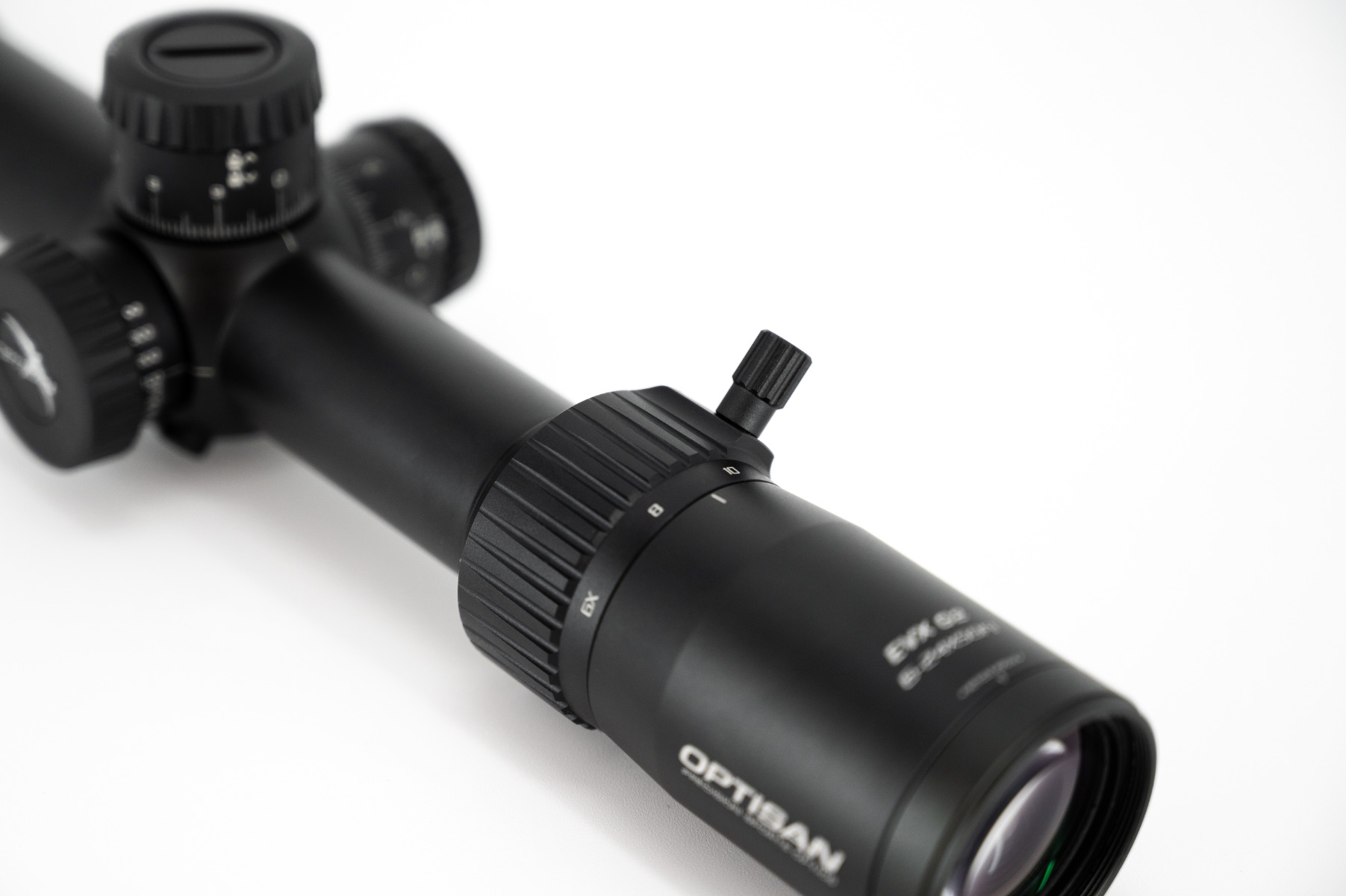

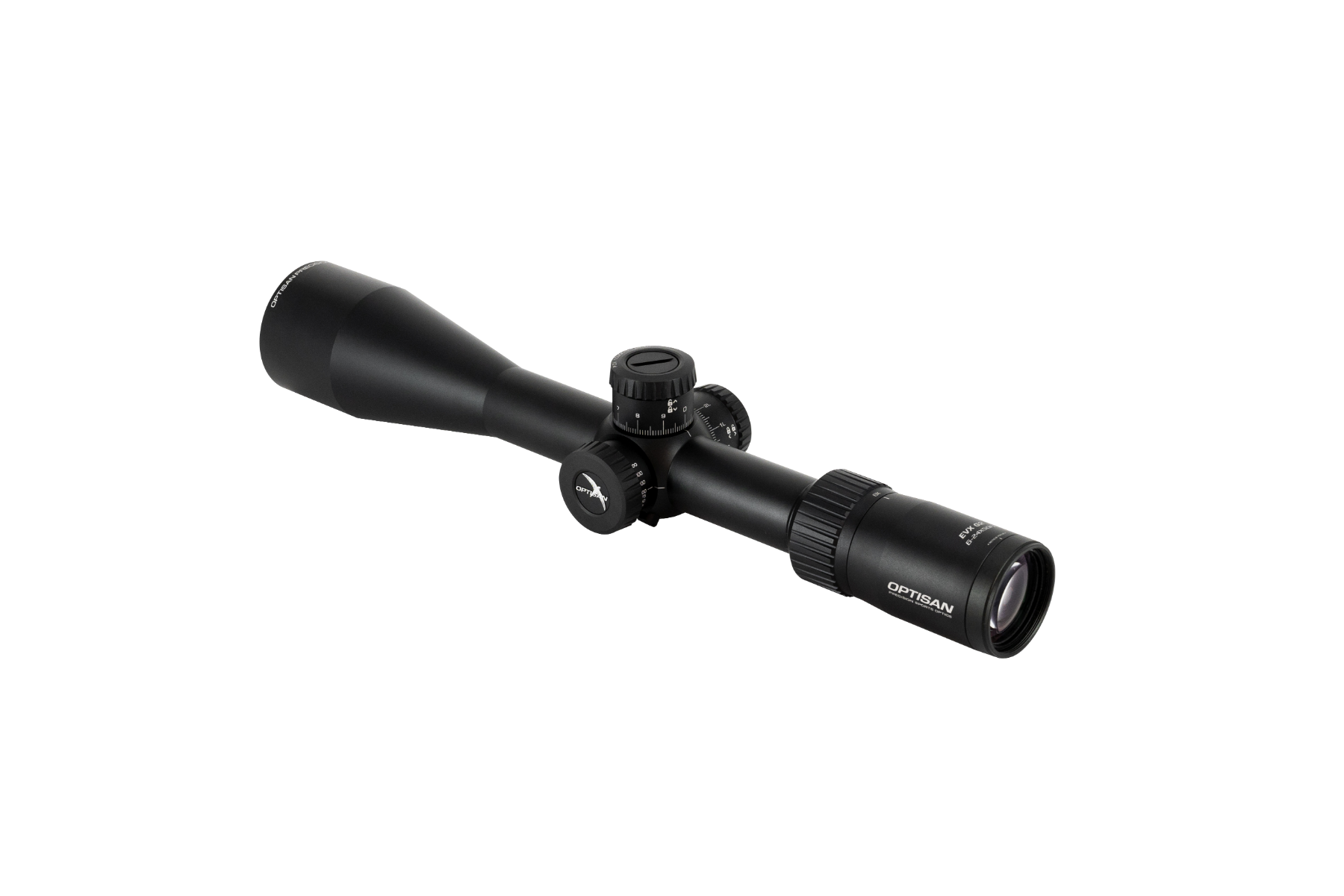

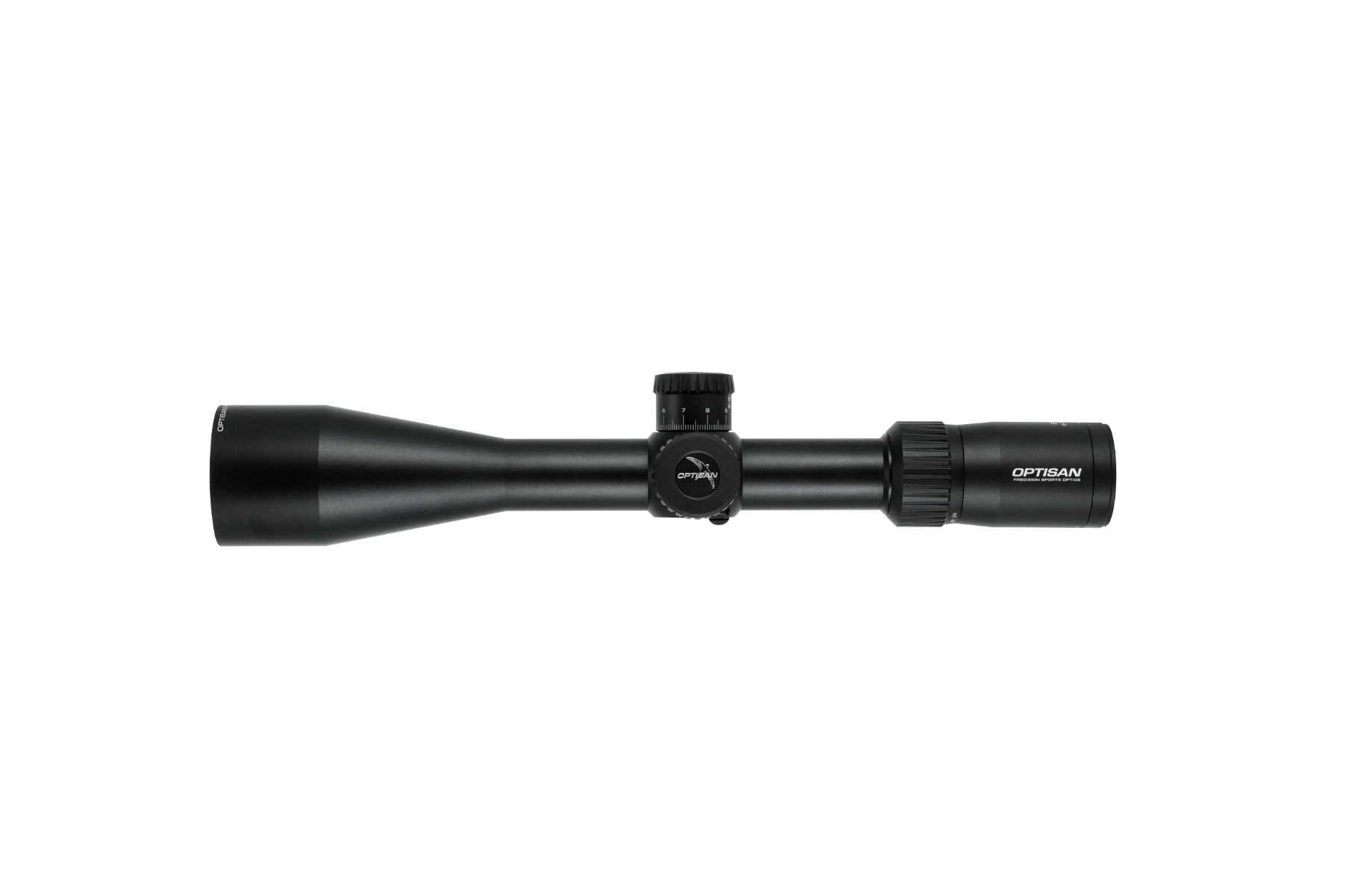

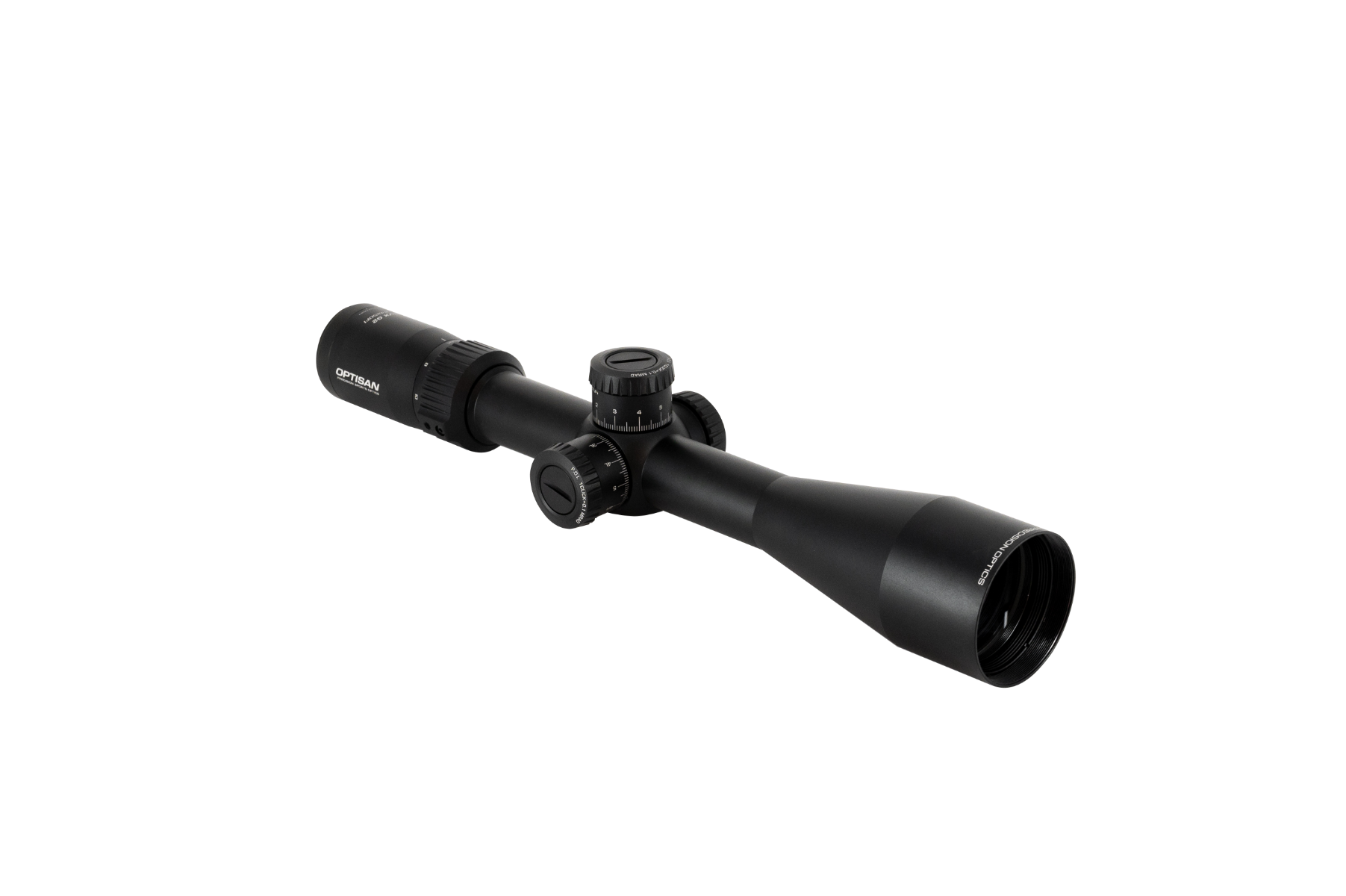

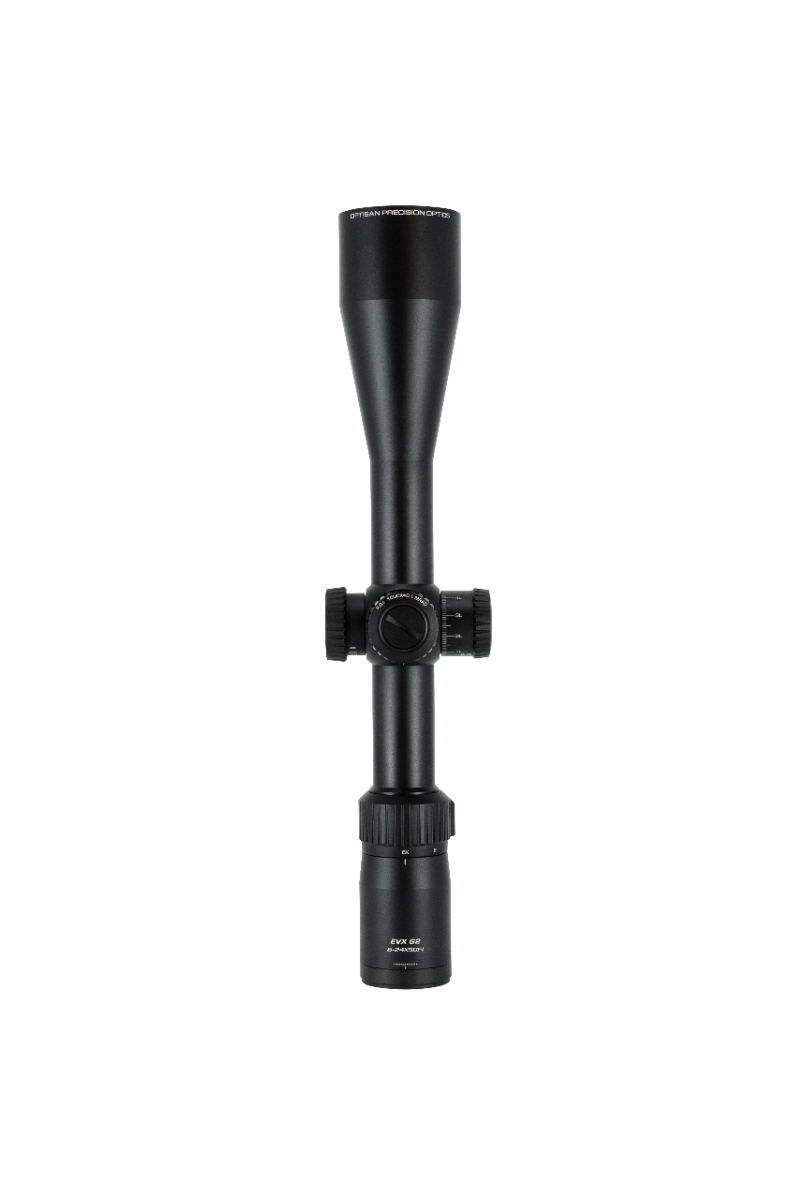

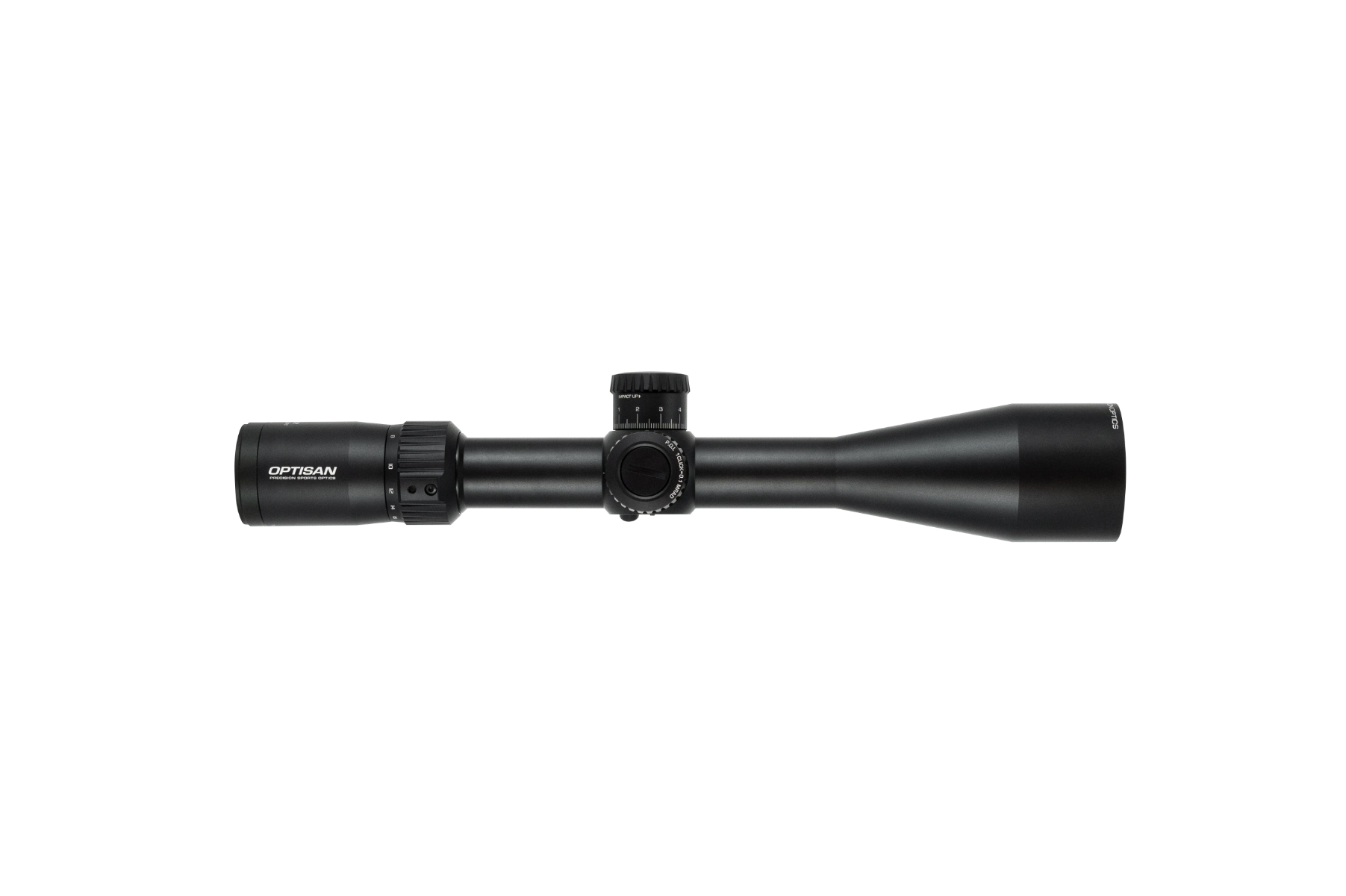

Optisan Optics EVX G2 6-24x50 F1 FFP Non Illuminated MRAD24 Side Focus 0.1 MRAD LT Rifle Scope
Was
£384.99
£338.79
4 in stock
Please be aware that during our Black Friday sales period there may be a small delay in the dispatch of your order.
Product Information
FIND OUT MORE
DESCRIPTION
Optisan EVX G2 6-24x50 F1 F1 Non Illuminated MRAD16 Side Focus 0.1 MRAD LT Rifle Scope
Brand new to the Optisan range of optics is highly anticipated Optisan EVX G2 6-24x50 F1 , this eagerly awaited replacement for the discontinued EVX G1 has finally arrived. The Optisan EVX G2 6-24x50 F1 comes with a first focal plane milradian based non illuminated MRAD24 reticle. This simple yet effective reticle features a series of hash marks from the center cross from 1 MRAD to 15 MRAD quick hold over 0.1 and 0.05 MRAD mil-dots that offer quick hold points for windage calls and windage hold offs. These dots start from the 1 MRAD has mark and move out across the windage in 1 MIL increments in a XMAS tree fashion until reaching the 5 MRAD hash marking on the elevation.
The Optisan EVX G2 6-24x50 F1 has a 30mm tube that provides 15.4 MRAD of internal adjustment (we would suggest adding a MOA rail or MOA rings for best optical performance) and 0.1 MRAD turrets which are lockable ensuring the user cannot accidententally knock these in the field or while transporting their firearm. The Optisan EVX G2 6-24x50 FFP has an improved optical system which helps provide the shooter with better optical clarity and resolution. This versatile rifle scope is perfect for air rifle shooters and centerfire shooters; its an ideal choice for a HFT shooter but also a great choice for a shooter looking to come in at a budget in the rimfire PRL league.
| OPTICAL DATA | |
|---|---|
| Magnification (High) | 24X |
| Magnification (Low) | 6X |
| Objective Diameter (mm) | 50mm |
| Outer dia. Objective (mm) | 58mm |
| FOV (min.mag）(ft/100yds) | 19.4 |
| FOV (max.mag）(ft/100yds) | 4.9 |
| Eye relief (in) | 3.8'' - 3.5'' |
| Exit Pupil (Max mag.） (mm) | 2.1mm |
| Exit Pupil (min. mag.） (mm) | 8.3mm |
| Diopter Range (dpt) | +/- 2.0 |
| Parallax Adjustment | 10 yds - infinity (pa free at 100yds) |
| Coating | Fully multi-coated |
| MECHANICAL DATA | |
| Tube Construction | One-piece tube, aircraft aluminum |
| Elevation Adjustment (value per click) | 0.1 mrad |
| Windage Adjustment (value per click) | 0.1 mrad |
| Turret Style (Elevation) | Lockable Target Turret |
| Turret Style (Windage) | Lockable Target Turret |
| Travel Per Rotation | 10 MRAD |
| Elevation adj. range | ≥ 15.40 mrad |
| Windage adj. range | ≥ 13.90 mrad |
| Eye Piece Diameter (in) | 1.73'' |
| Eye Piece Diameter (mm) | 44mm |
| Eye Piece Length (in) | 2.15'' |
| Eye Piece Length (mm) | 51.2mm |
| Mounting Length rear (mm) | 57.5mm |
| Mounting Length front (mm) | 56.5mm |
| Tube Dia. (mm) | 30mm |
| Length (in) | 14.33'' |
| Length (mm) | 364mm |
| Weight (g) | 802 |
| Weight (oz) | 28.28 |
| Surface Finish | Matte Black |
| ENVIRONMENT DATA | |
| Functional temperature | -20 ~ 50 degree celcius |
| Storage temperature | -20 ~ 50 degree celcius |
| Submersion tightness | JIS 7 |
| RETICLE DATA | |
| Reticle | F1MRAD24 |
| Calibrated Ranging Power | Not applicable |
| Focal plane | First |
| Illumination | Non-illuminated |
| DELIVERY INCLUDE | |
| Standard Accessories | Lens covers, blank elevation turret dial, 3'' sunshade, speed lever. |
The F1MRAD24 reticle is an all-around MRAD(MIL) based reticle designed for precision ranging at all magnifications with an uncluttered view and fine windage correction reference marks.
- Lens covers
- Blank elevation turret dial
- 3'' sunshade
- Speed lever
