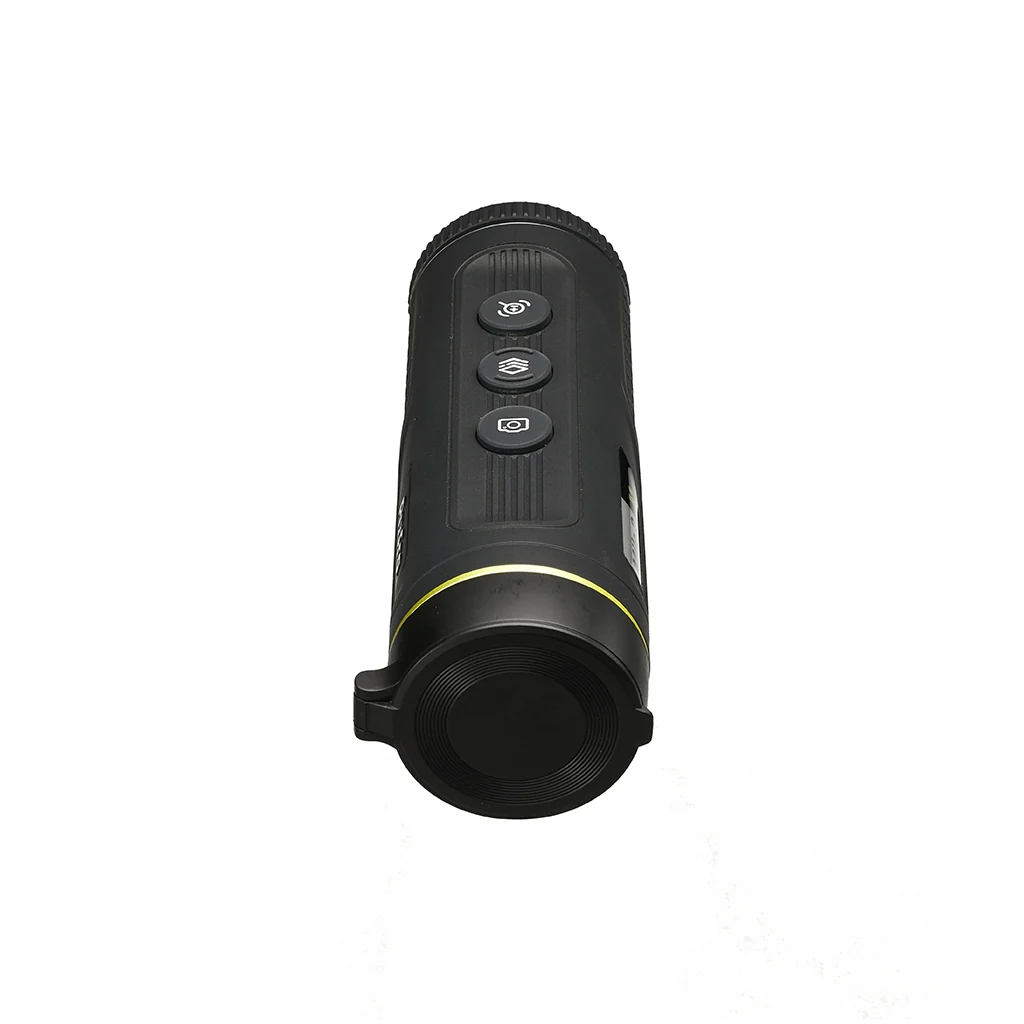

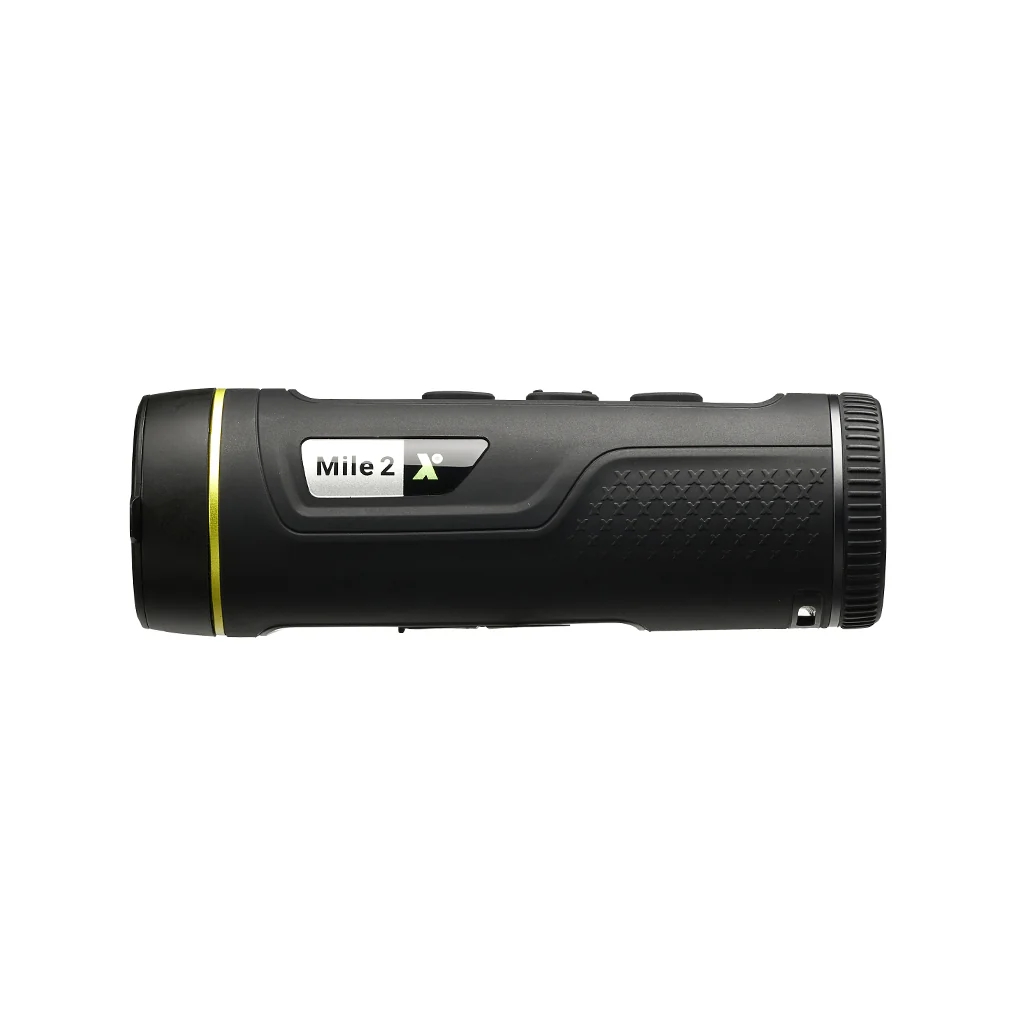

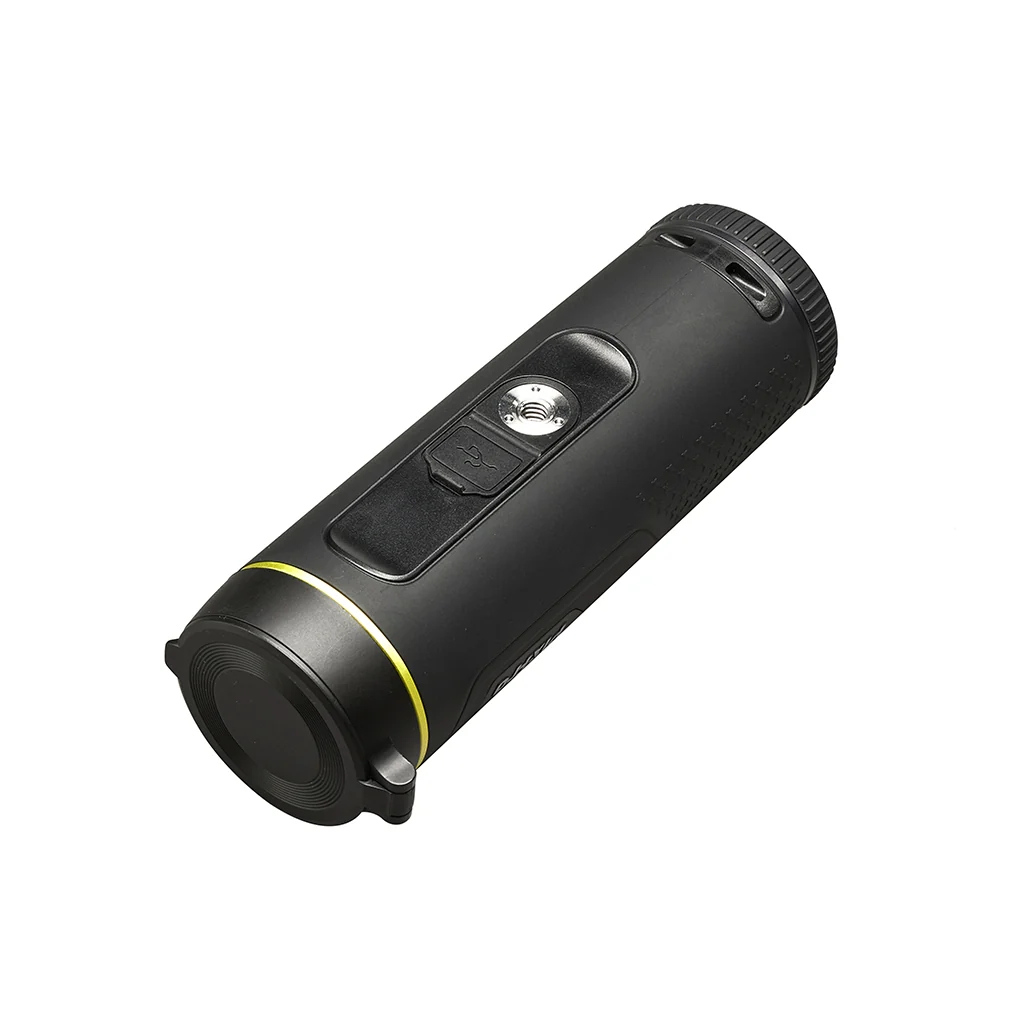

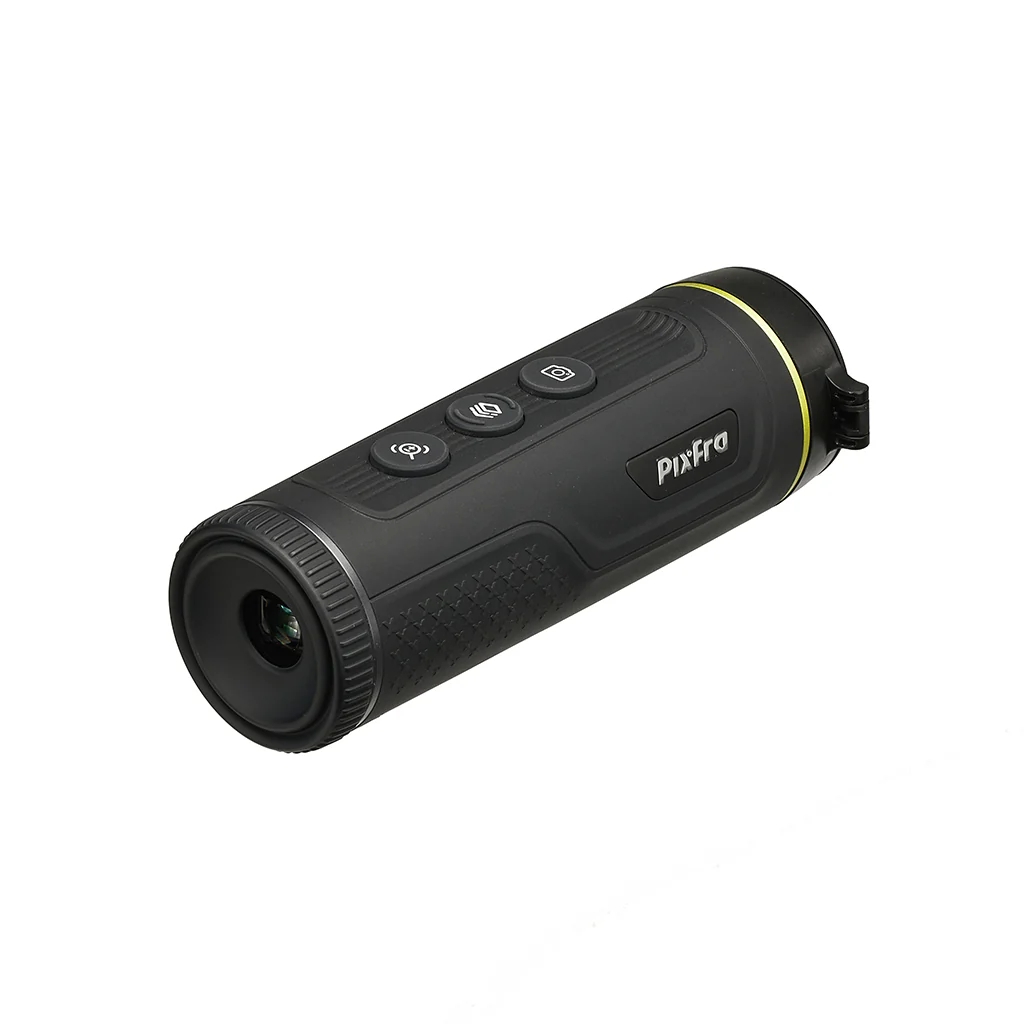

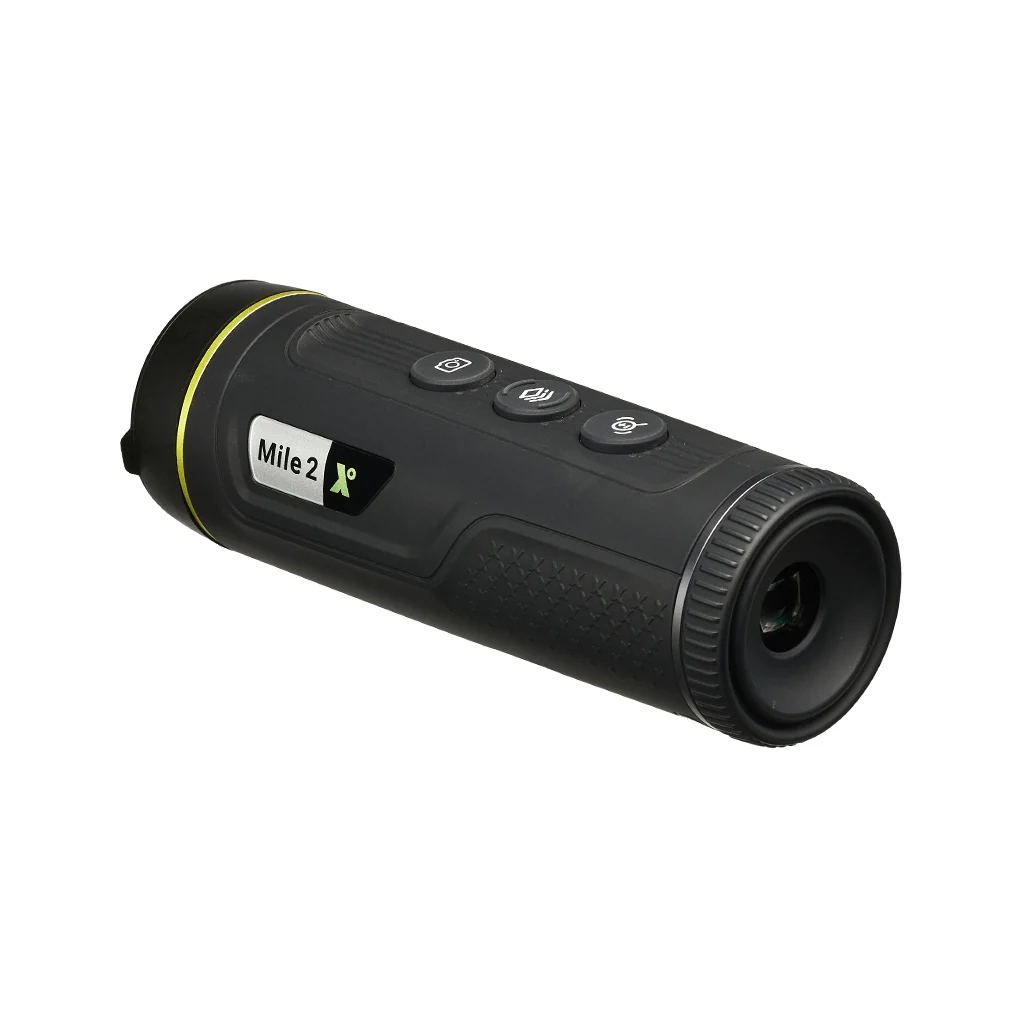

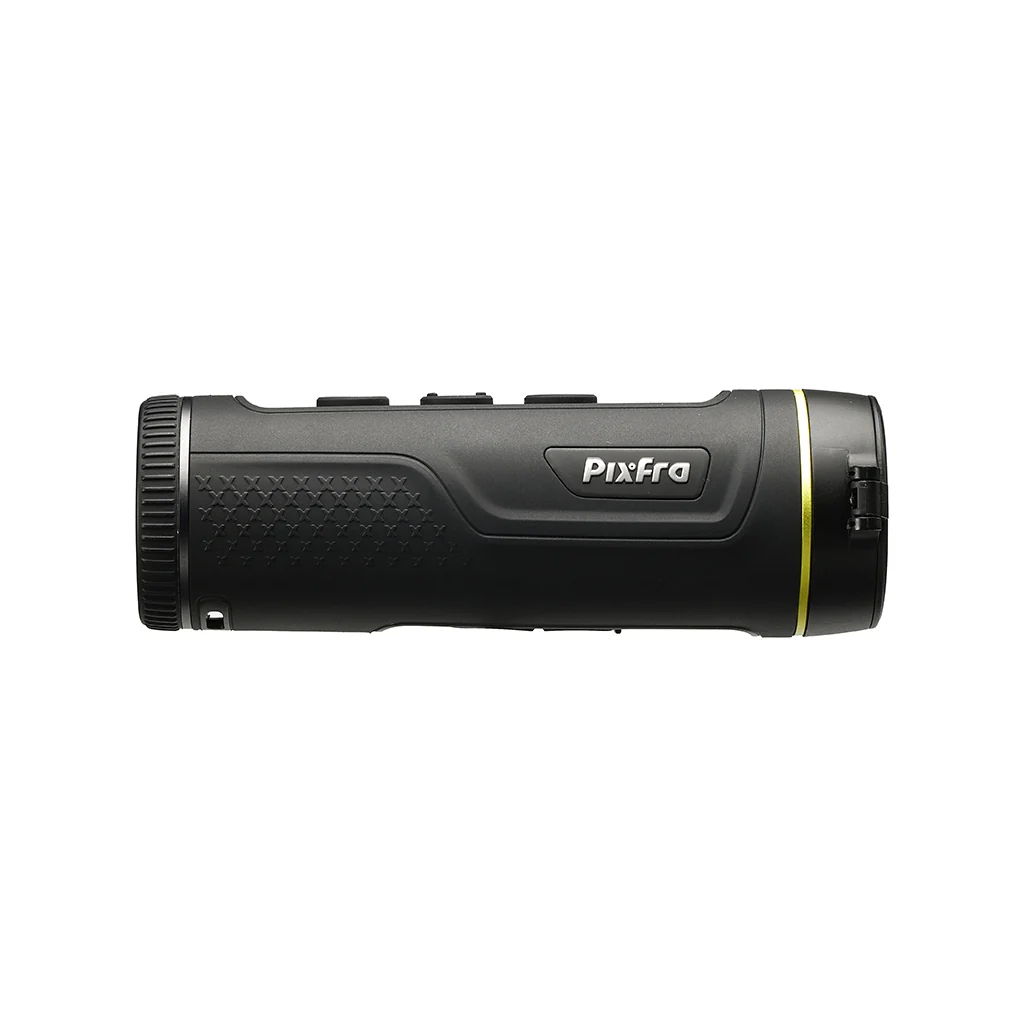

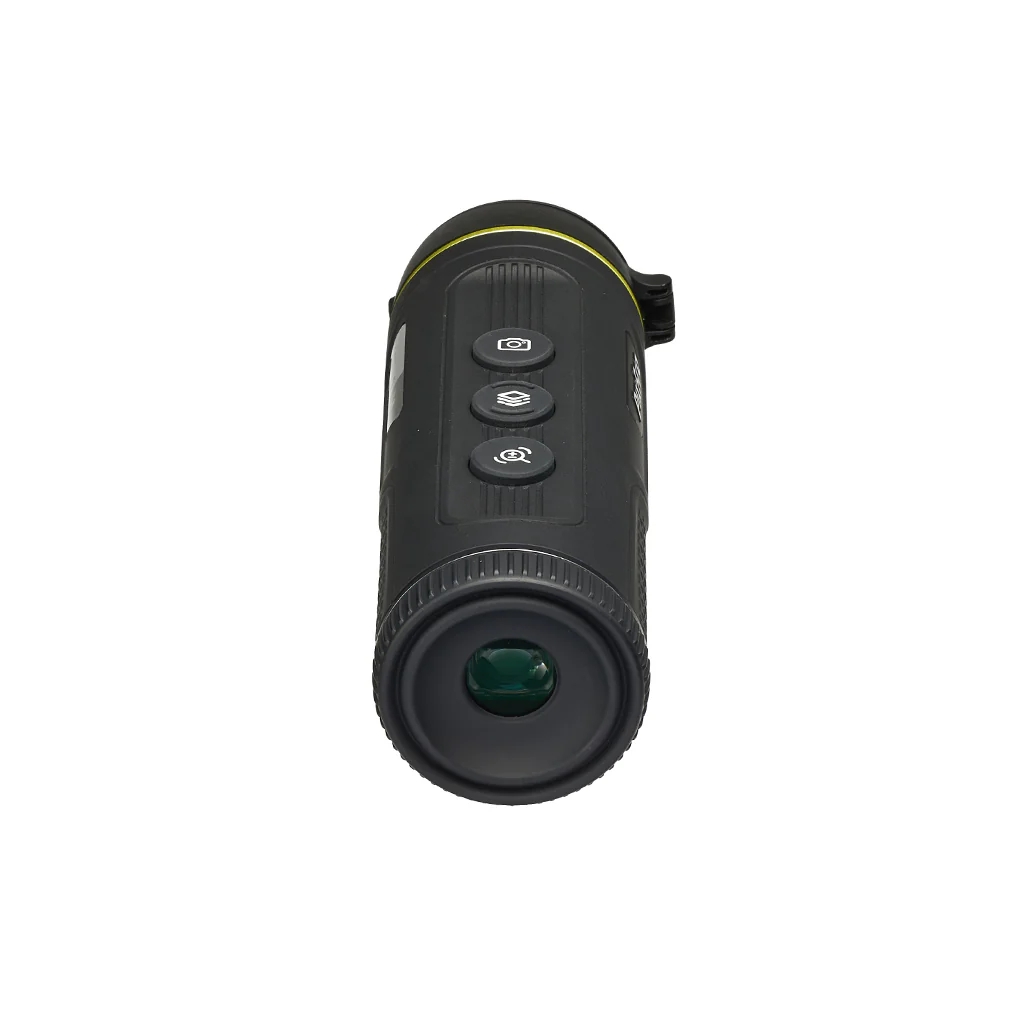

Pixfra MILE 2 M215 Handheld Thermal Monocular - 256x192/12µm/15mm 35mk
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
The Mile 2 M215 is crafted for seamless user experience. Its new slimline design is not only visually sleek but functionally efficient. By integrating the power button into the Pixfra logo, the monocular achieves a minimalist aesthetic, reducing button clutter and enhancing ease of operation. This lightweight, compact design makes it easy to carry in a bag or pocket, and it’s comfortable to hold for extended observation sessions. The M215 also comes with convenient accessories, including a soft pouch, neck strap, wrist strap, and lens cloth, adding portability and comfort to its list of features.
Built to withstand tough outdoor conditions, the M215’s IP67 rating means it’s fully protected against dust and capable of enduring heavy rain, fog, and extreme temperatures ranging from -30 to +55°C. It continues to perform reliably in up to 95% humidity, making it suitable for diverse environments and ensuring users don’t lose valuable observation time due to adverse weather. Additionally, a robust rechargeable battery offers up to 8.5 hours of operation on a single charge, ensuring continuous use through long excursions, day or night.
Connectivity is a major advantage of the M215. With built-in Wi-Fi, it connects seamlessly to smartphones and tablets via the Pixfra app, allowing up to four devices to view the thermal feed simultaneously at distances up to 40 meters. This feature makes the monocular ideal for group activities, such as wildlife observation or search-and-rescue missions, where multiple users benefit from live streaming. Its extensive digital features include built-in video recording, still image capture, digital zoom (up to 8x), and six color palettes, allowing users to customize their experience and capture critical moments.
- Thermal Sensor 256×192, 12μm, <35mK NETD
- Objective Lens 15mm f1.0
- Spectral Range 8 μm–14 μm
- Field of View H
- Focus Control Fixed-focal
- Close Focus Distance 2.6 m (8.53 ft)
- Detection Range Up to 800 m
- Magnification 2.33x
- Frame Rate 50 Hz
- Display 800 × 600, 0.32 inch OLED
- Color Palettes 6 (White Hot, Black Hot, Iron Red, Alarm, Emerald, Amber)
- Video Compression H.264
- Diopter –3 D to +1 D
- Eye Relief 13 mm (0.51 inch)
- Exit Pupil 5 mm (0.20 inch)
- Digital Zoom 1×, 2×, 4×, 8×
- Video Recording Yes
- Still Image Capture Yes
- Wi-Fi Hotspot Yes
- Hot Spot Tracking Yes
- Video Distance Measurement Yes
- FFC Calibration Auto, Manual, External Correction
- Standby Mode Yes
- DPC (Defective Pixel Correction) Yes
- Storage Built-in 16GB
- Battery Type Rechargeable Lithium Battery
- Battery Life 8.5 hours (@ 25°C)
- Power Supply 5 VDC/2 A
- Port USB Type-C
- Overvoltage Protection Yes
- Operating Temperature –30 to +55 °C (–22 to +131 °F)
- Operating Humidity ≤95%
- Protection Grade IP67 (Dustproof, Waterproof)
- Product Dimensions 149.0 mm × 56.6 mm × 50.3 mm (5.87″ × 2.23″ × 1.98″) (L × W × H)
- Gross Weight 760 g (1.68 lb)
- Net Weight 270 g (0.60 lb)
-
High-Resolution Thermal Sensor: Equipped with a 256×192, 12μm thermal sensor, it provides detailed thermal images with a <35mK NETD for accurate temperature detection.
-
Powerful Objective Lens: The 15mm f1.0 lens ensures optimal light gathering, delivering clear, sharp images even in low-light conditions.
-
Long Detection Range: Capable of detecting heat signatures up to 800 meters, making it ideal for long-range observation.
-
Vivid OLED Display: Features an 800×600, 0.32-inch OLED screen that displays crisp and clear thermal images, even in total darkness.
-
Slim and Lightweight Design: Compact and easy to carry, the M215 is lighter and more portable than previous models, allowing for extended use without fatigue.
-
Enhanced Durability: With an IP67 rating, the monocular is dustproof and water-resistant, ensuring reliable performance in all weather conditions, including rain, fog, and extreme temperatures.
-
Long Battery Life: A rechargeable lithium battery offers up to 8.5 hours of continuous use on a single charge, depending on conditions.
-
Seamless Connectivity: Built-in Wi-Fi allows the device to connect to up to four smartphones or tablets at once, enabling group viewing and live sharing of thermal images at a distance of up to 40 meters.
-
Video and Image Capture: The M215 allows users to record videos and capture still images, ensuring that important moments can be preserved for later analysis.
-
Multiple Color Palettes: Six different color palettes (White Hot, Black Hot, Iron Red, Alarm, Emerald, and Amber) are available, allowing users to customize their display for various environments and preferences.
-
Digital Zoom: Offers 1x, 2x, 4x, and 8x digital zoom options to enhance the level of detail at different distances.
-
Convenient Accessories: The monocular comes with useful accessories including a USB Type-C charging cable, wristband, lanyard, lens cloth, camera pouch, and eyeshade, enhancing convenience and ease of use.
-
Intuitive User Interface: Simplified operation with fewer buttons, thanks to the integration of the power button into the Pixfra logo, making it easier to manage digital functions.
-
Video Distance Measurement: The built-in measurement tool allows for precise distance estimation of detected objects, useful in various professional applications.
-
Hot Spot Tracking: This feature automatically detects and tracks the hottest object in the field of view, making it easier to monitor moving targets.
-
FFC Calibration: Provides automatic, manual, and external correction options for ensuring optimal image quality over time.
-
Defective Pixel Correction (DPC): The monocular includes technology to correct defective pixels, ensuring high-quality image output.
-
Standby Mode: The device has a power-saving standby mode, allowing it to be quickly reactivated when needed.
- Pixfra MILE 2 M215 Handheld Thermal Monocular - 256x192/12µm/15mm 35mk
- USB Type-C Charging Cable
- Wristband
- Lanyard
- Lens Cloth
- Camera Pouch
- Eyeshade
- Quick Start Guide
- Pixfra 3 year warranty
