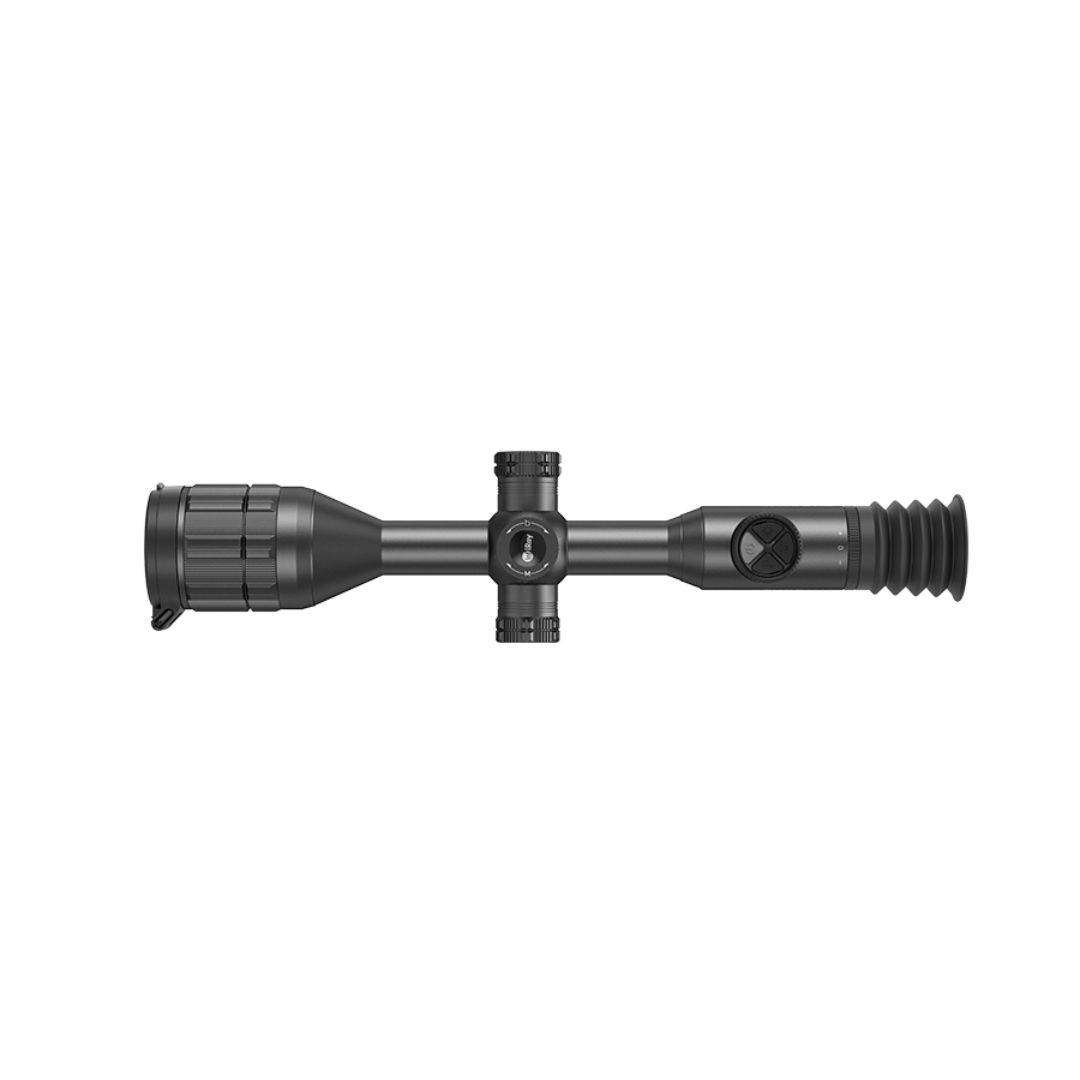

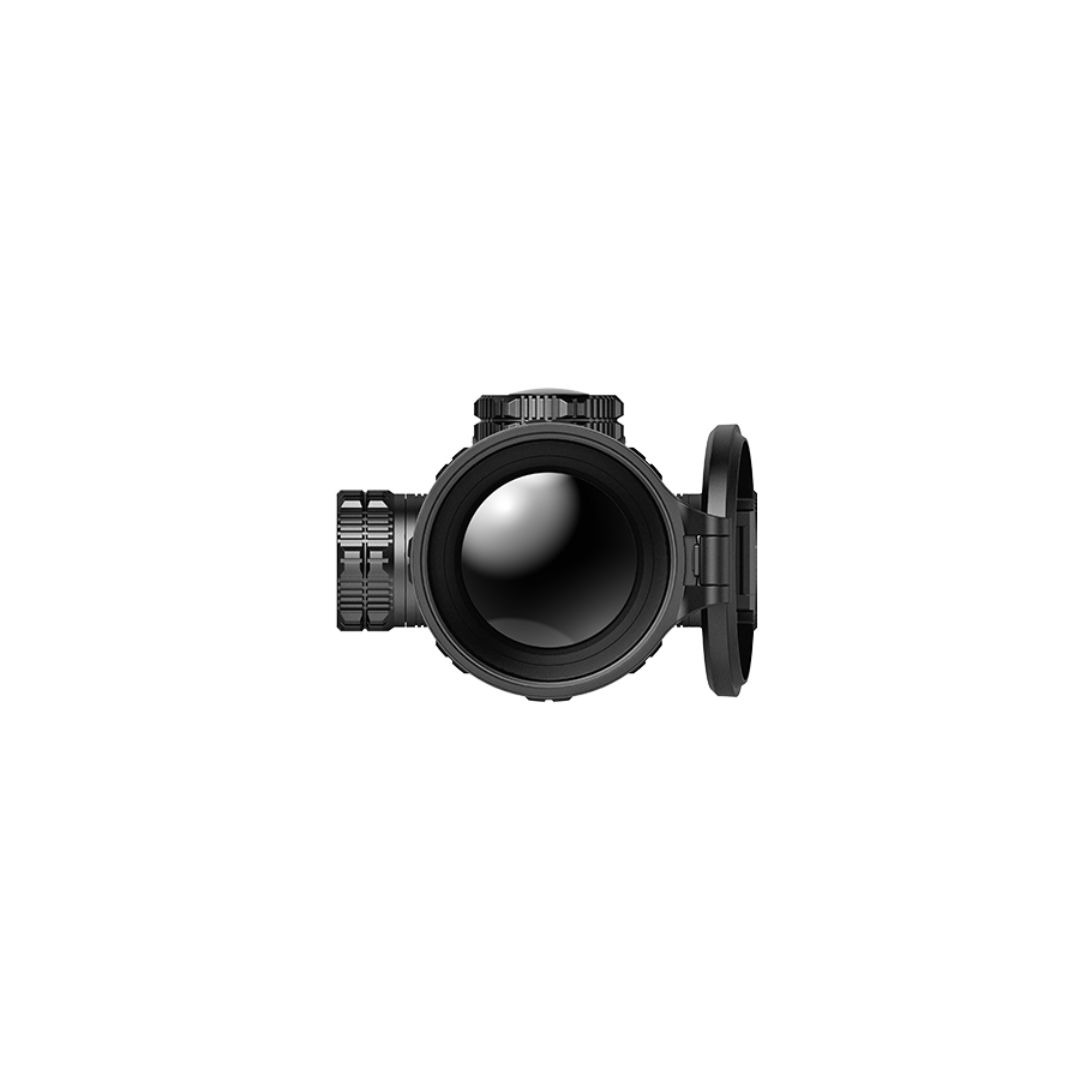

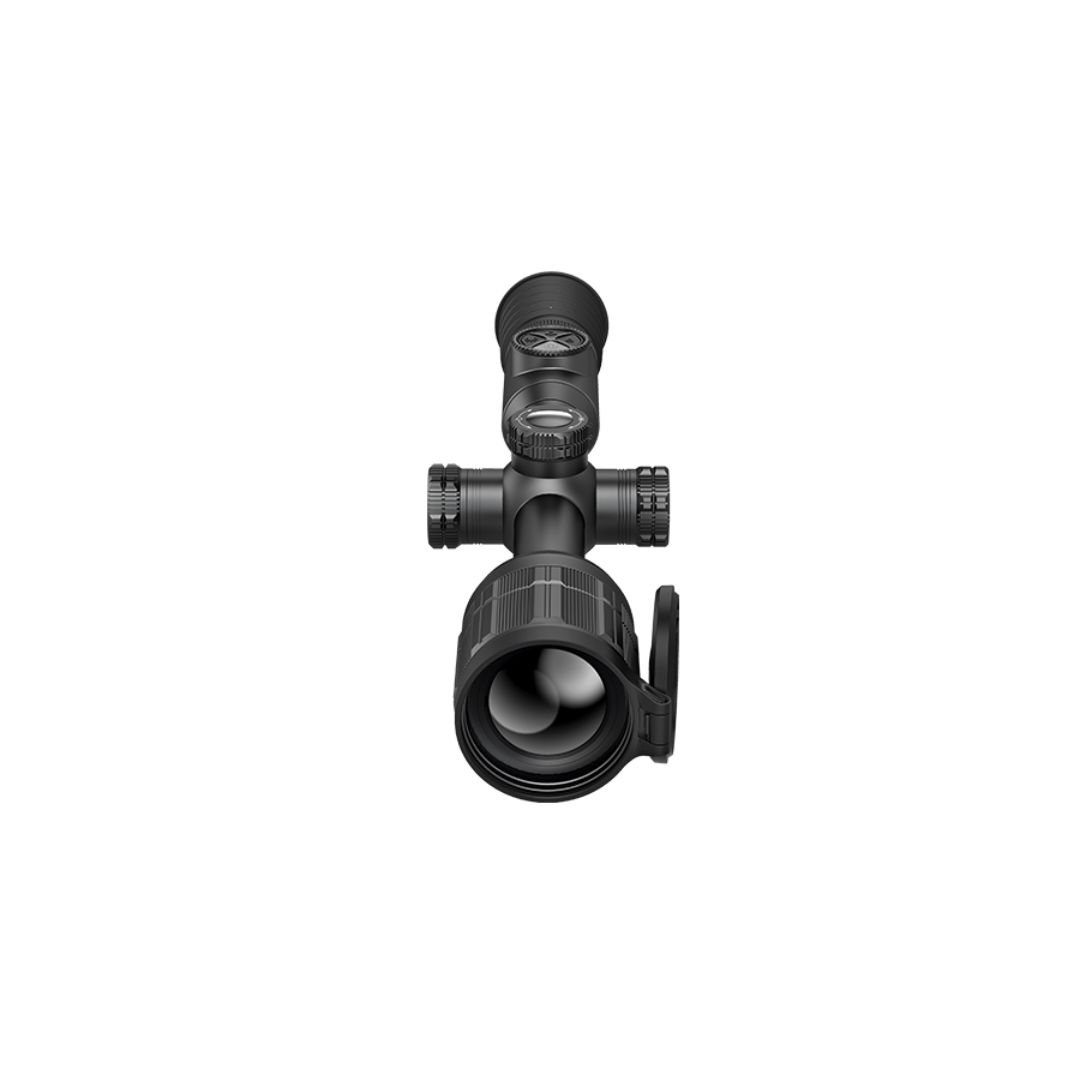

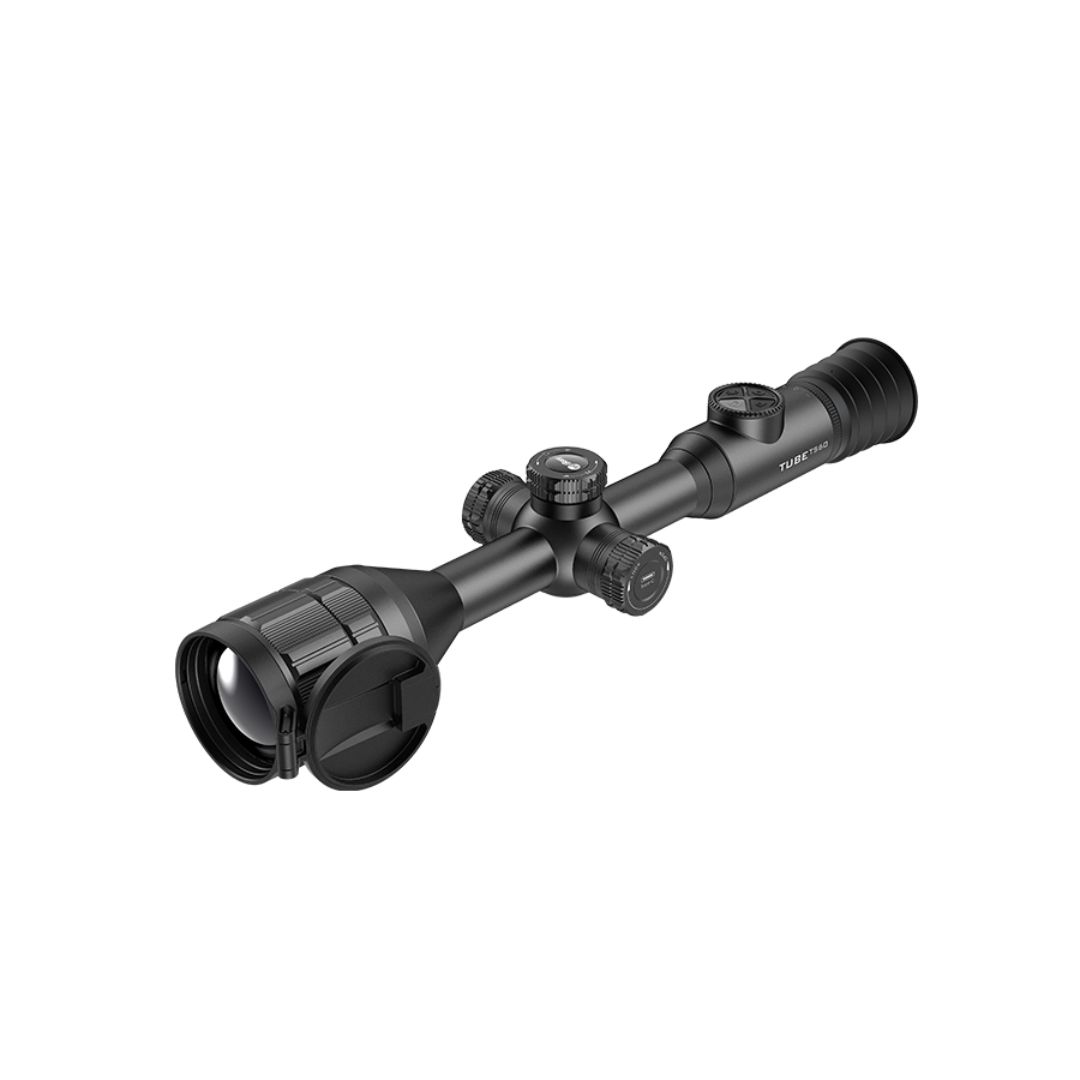

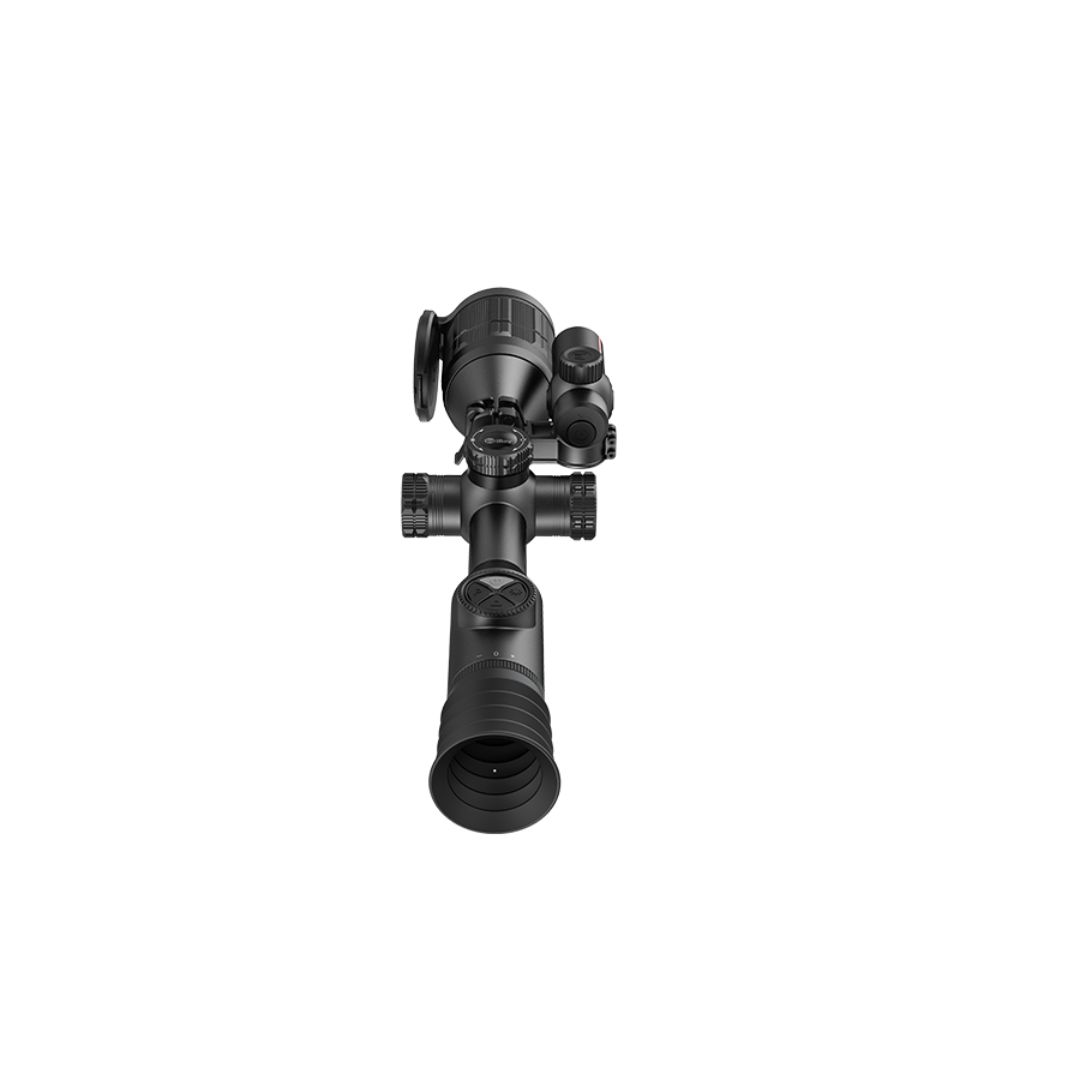

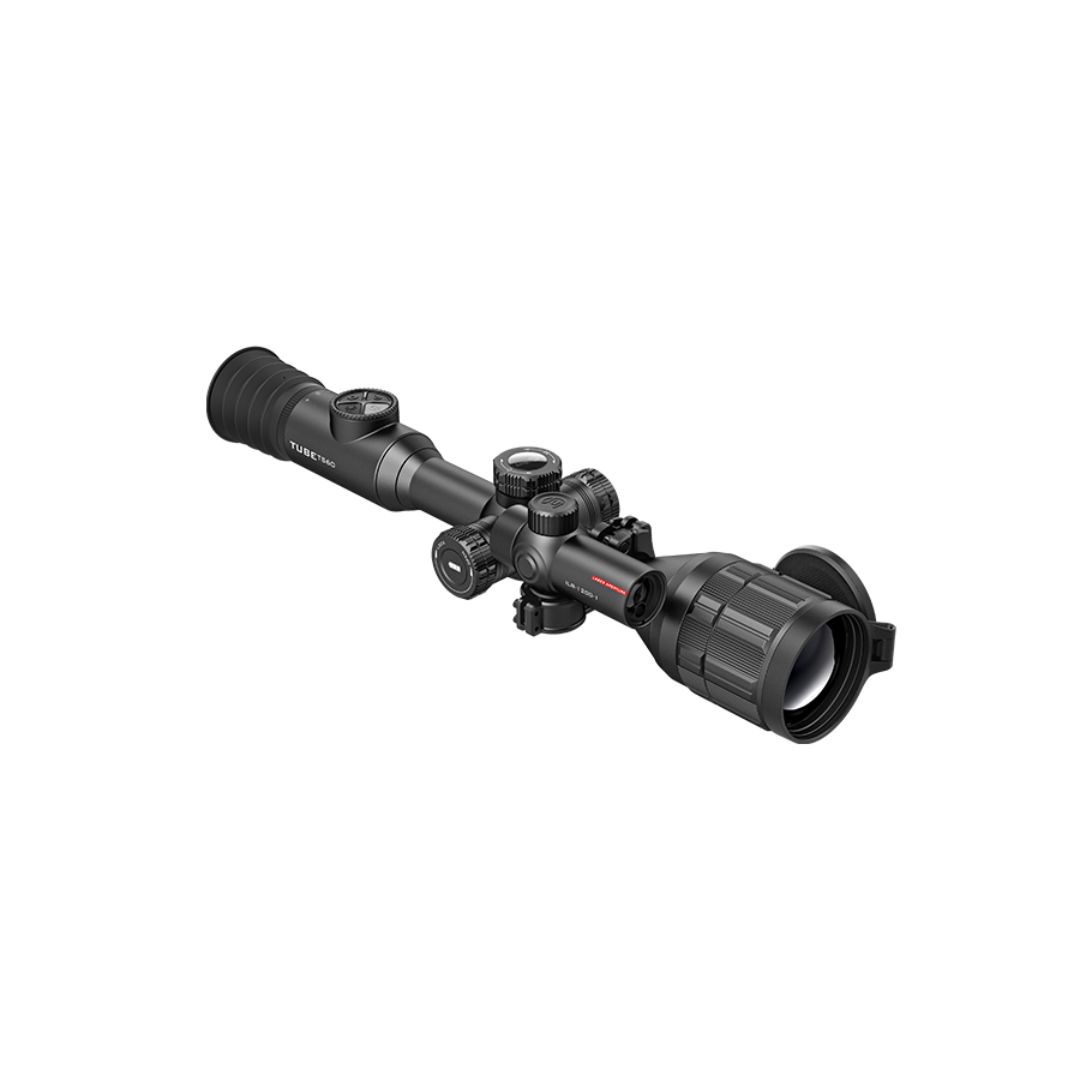

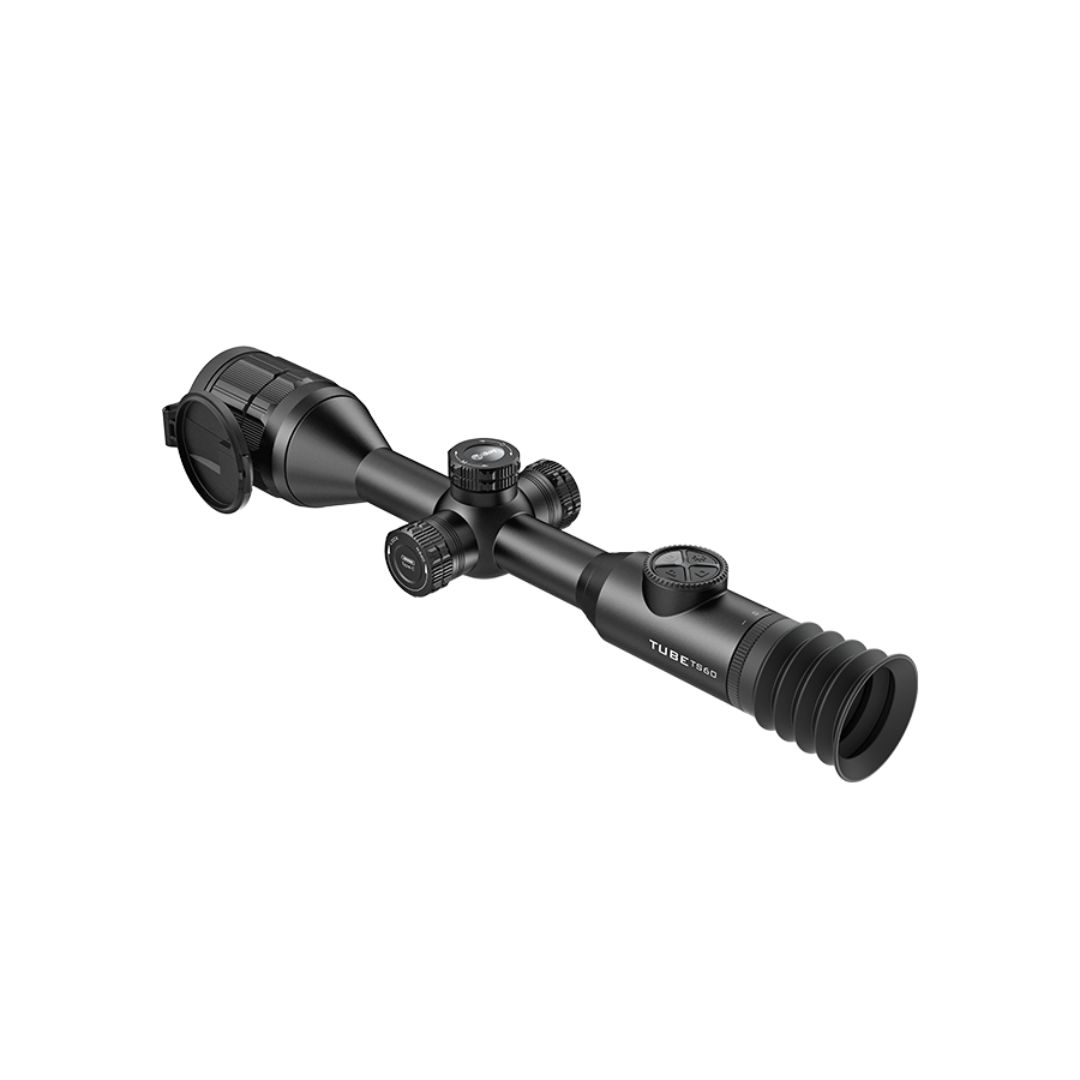

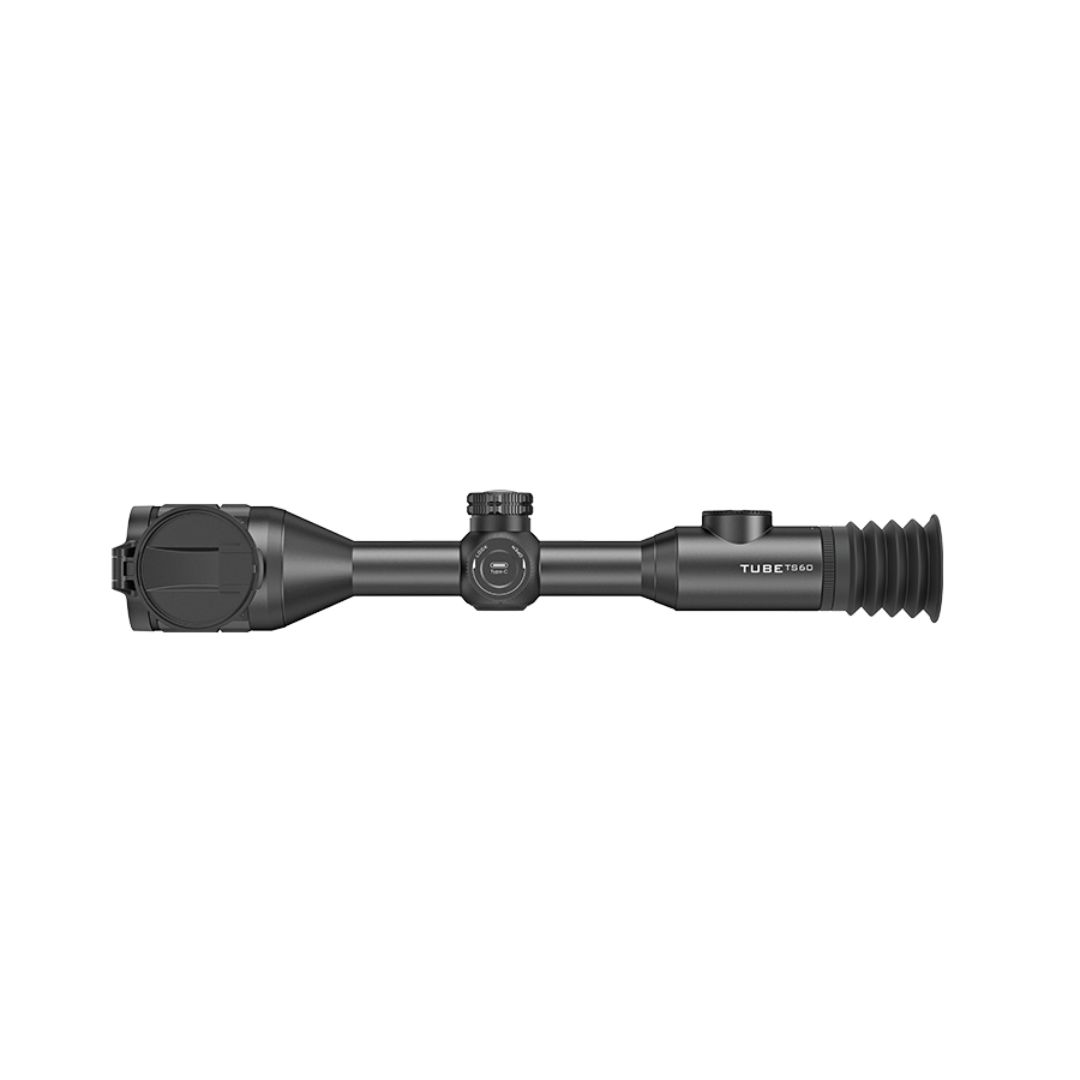

InfiRay TS60 TUBE Series 1280x1024 <18mk 50Hz LRF Thermal Imaging Riflescope

• Type: Vox
• Resolution, pixel: 1280x1024
• Pixel Size, μm: 12
• NETD, mk: ≤18
• Frame Rate, Hz: 50

• Objective Lens, mm: 60mm/F1.0
• Field of View (H×V), °: 14.7 × 11.7
• Linear Field of View (HxV), m at 100m: 25.6 x 20.5
• Magnification, ×: 2 ~ 16
• Eye Relief, mm: 50
• Exit Pupil Diameter, mm: 6
• Diopter, D: -5 ~ +3.5
• Detection Range, m (Target size: 1.7m×0.5m, P(n)=99%): 3100

• Type: AMOLED 1.03”
• Resolution, pixels: 2560×2560

• Battery: Built-in battery / 6600mAh + replaceable 18650 battery/3200mAh
• Max. operating Time (22℃), h: 9
• External Power Supply: 5V (Type C)

• Wi-Fi/APP: Support (InfiRay outdoor)
• Photo/Video Recorder: Support
• MIC: Support
• Bluetooth: Support
• Memory Capacity: 128GB
• IP rating: IP67
• Operating Temperature, ℃: -20 ~ +50
• Weight, g: 1000g
• Dimension, mm: 384×104×77

• Max. recoil power on rifled weapon (Eo), Joules: 6000
• Click Value @100m, cm: 2
• Compatible mount: Standard 30mm rings

Long-distance Detection at Ease

Thanks to its high-end thermal sensor and high-definition display, the TS60 boasts an impressive 3100m long detection range. This means it has the capability to significantly enhance long-range hunting experiences, providing hunters with unprecedented advantages.

Immersive Shooting Experience

While emphasizing aesthetic design, the TS60 maintains an impressively lightweight body, ensuring that it won't cause fatigue even during extended usage. Moreover, it features ergonomic design elements such as soft-touch buttons, maximizing convenience for users and enhancing their overall comfort.

Ultra-long Battery Life

With its built-in 6600mAh battery and the option to add an additional 18650 standard battery (replaceable and rechargeable), the TS60 offers an extended maximum operating time of up to 9 hours (at 22℃), making it ideal for those extended hunting sessions. The TS60 is poised to become your most reliable companion during every ambush and hunting moment.

Rigorous Testing & High-durability

It is crafted using high-strength aluminum alloy materials that have undergone rigorous impact resistance testing. Its exceptional robustness and durability make TS60 a consistent companion for years to come.

Complimentary LRF, Ballistic Calculation Available

The TS60 comes with a standard configuration of a 1200m laser range finder. The LRF is easy to install, dismount and connect. With the Bluetooth connection, the range-finding result can be synchronized to the display of your TS60 with no latency.

TS60's LRF also enables ballistic calculation, which gives hunters more confidence to pull the trigger in complex environments.

• InfiRay TS60 TUBE Series 1280x1024 ≤18mk 50Hz LRF Thermal Imaging Riflescope

• 3 Year Warranty
