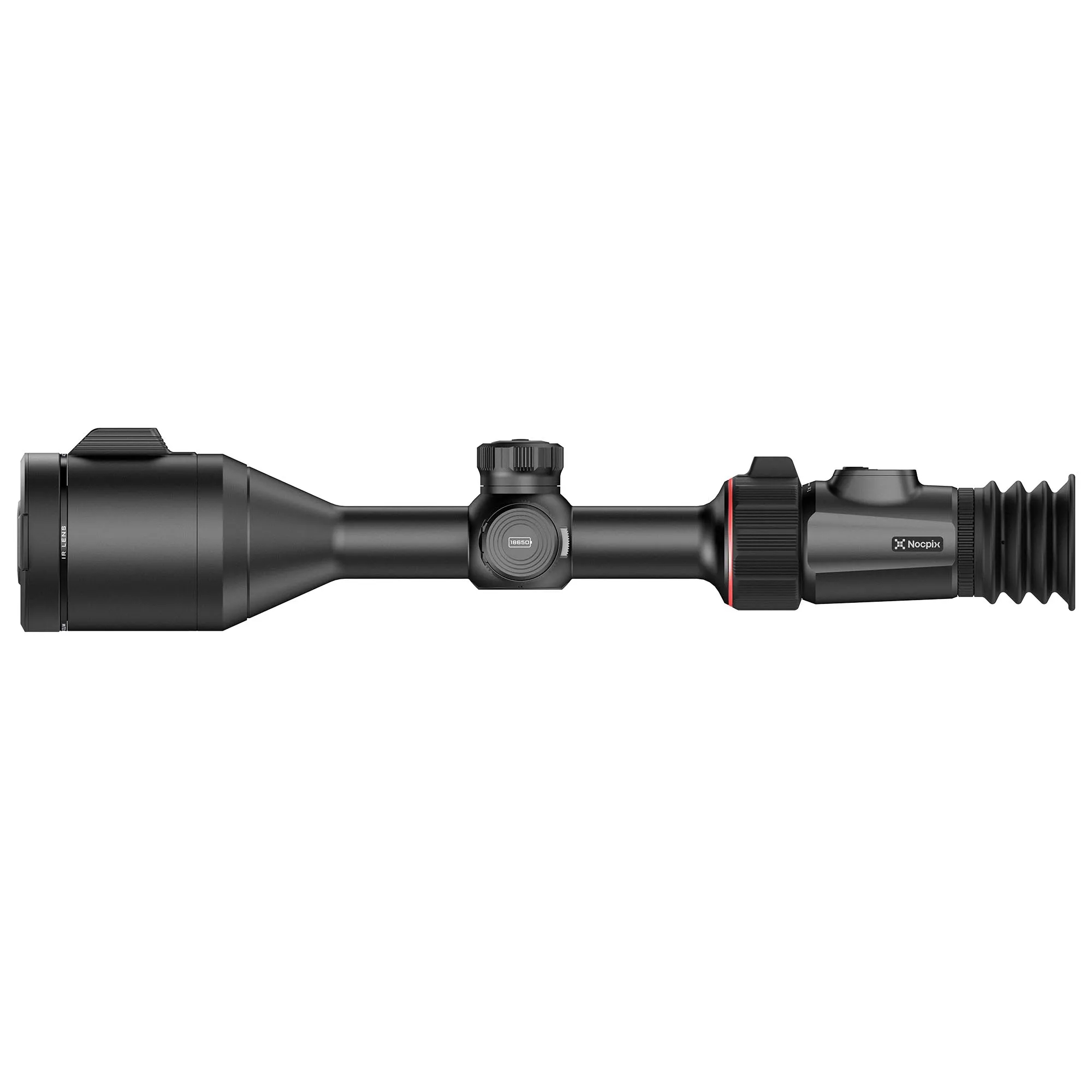

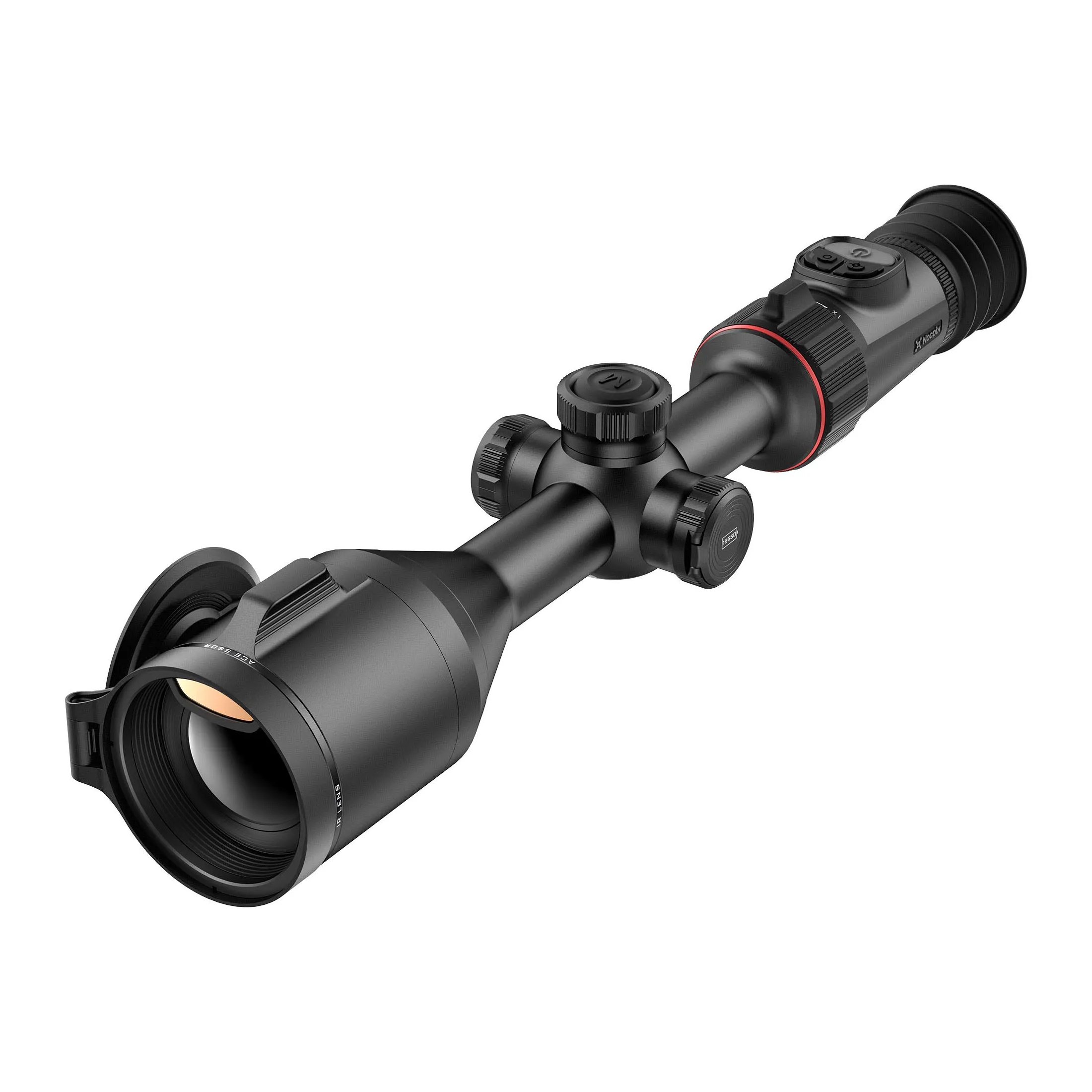

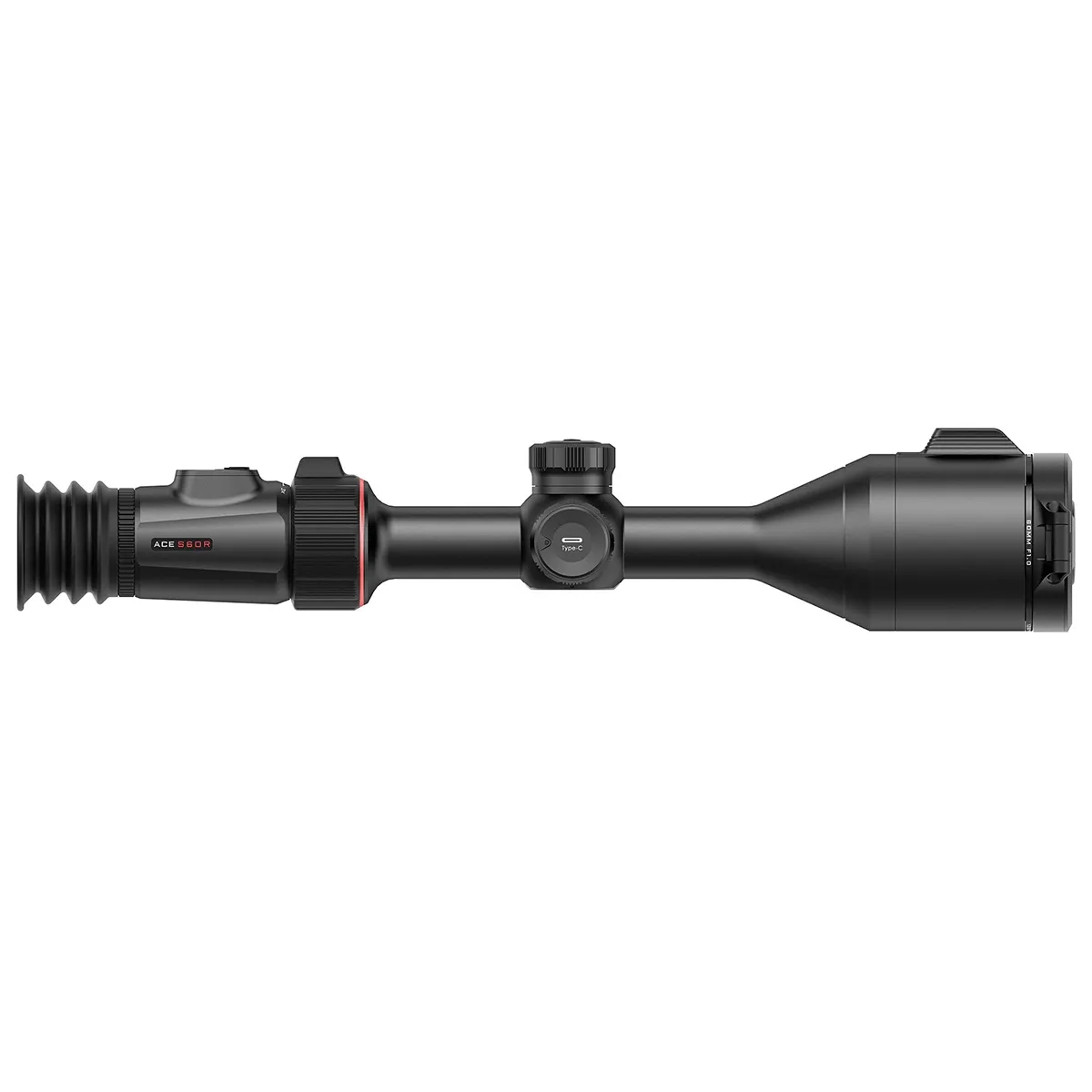

NocPix ACE S60R Thermal Rifle Scope - 12um 1280x1024 <15mK NETD w/ LRF & Ballistic Calculation
The NocPix ACE S60R Thermal Rifle Scope offers unmatched precision and clarity with its 1280x1024 Gen-2 HD thermal sensor, Reality+ image enhancement, and a 3100m detection range. Its integrated laser rangefinder measures distances up to 1200m, while the Vision+ system and 60mm/F1.0 lens deliver sharp, distortion-free visuals. Designed for hunters, it features ballistic calculations, recoil-activated video, and a dual-battery system for extended use. Built tough with IP67 water resistance, it's your ultimate companion for all hunting environments.
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
At the heart of this extraordinary scope is a Gen-2 HD thermal sensor with an impressive resolution of 1280×1024 and an ultra-sensitive NETD of ≤15mK. This next-generation sensor enables the ACE S60R to detect even the slightest variations in temperature, ensuring crisp, detailed thermal imagery in real-time. With a 50Hz frame rate, the scope delivers smooth visuals that keep up with the speed of your target, allowing you to lock on with unmatched precision.
The NocPix ACE S60R also features a 60mm/F1.0 lens that gathers 20% more light than standard scopes, giving you brighter, clearer images even in the darkest conditions. Its superior long-range detection of up to 3100 meters allows you to easily identify and track distant targets, providing a critical advantage for long-range hunting and shooting scenarios. Coupled with NocPix’s proprietary Reality+ image processing algorithm, the ACE S60R dramatically reduces environmental noise, delivering sharp, high-contrast images every time.
For those who demand even more visual clarity, the ACE S60R is equipped with the innovative Vision+ system. The round 1.03-inch 2560×2560 AMOLED display, paired with industry-leading ocular zoom, provides unparalleled optical magnification without the blurring or distortion typically associated with e-zoom. This groundbreaking technology ensures that you enjoy a crystal-clear view and a wide field of vision, whether you're zooming in on your target or scanning your surroundings.
Precision is key when it comes to hunting, and the ACE S60R doesn’t disappoint. Its built-in laser rangefinder (LRF) offers accurate distance measurements up to 1200 meters. The LRF is seamlessly integrated into the sleek design, maintaining true optical axis alignment while allowing you to calculate exact ranges without breaking focus. And with ballistic calculation functionality built in, the ACE S60R ensures your shots are precise, taking into account every factor for flawless accuracy.
Designed with hunters in mind, the NocPix ACE S60R also boasts a dual-battery system with a built-in 4000mAh battery and a replaceable 18650 battery for extended field use. No more worrying about running out of power in the middle of your hunt—this system is designed to last as long as your adventure does. Additionally, features like auto screen shutdown, recoil-activated video recording, and a shutterless design make this thermal scope a true game-changer in the field.
Built for the harshest outdoor conditions, the ACE S60R is crafted from high-strength aluminum alloy, rigorously tested to withstand extreme impacts and rough use. Rated IP67 for water resistance, it performs flawlessly in rain, dust, and challenging environments, ensuring your scope is as tough as your hunting instincts.
The NocPix ACE S60R is more than just a thermal rifle scope—it’s the ultimate hunting companion. With cutting-edge technology, exceptional durability, and a suite of advanced features designed to elevate your hunting experience, this scope will redefine what you expect from your gear. Get ready to rule the night.
- Type: Vox
- Resolution, Pixels: 1280×1024
- Pixel Size, um: 12μm
- NETD, mK: ≤ 15
- Frame Rate, Hz: 50
Optical Specifications:
- Objective Lens, mm: 60/F1.0
- Field of View (H×V), º: 14.7×11.7
- Linear Field of View (H×V), m @ 100m: 25.6x20.5
- Magnification, x: 2~24
- Ocular zoom, x: 1~3
- Eye Relief, mm: 50
- Exit Pupil Diameter, mm: 8
- Diopter, D: -5~+5
- Detection Range, m: 3100
Display Specifications:
- Type: AMOLED
- Resolution: 2560×2560
Battery Power Supply:
- Battery: Built-in battery/4000mAh + Replaceable 18650 battery
- Max. Operating Time (22ºC), h: 6
- External Power Supply: 5V (Type C)
Physical Specifications:
- Wi-Fi / APP Support: Yes
- Photo / Video Recorder: Yes
- Recoil Activated Video: Yes
- Gallery: Yes
- Memory Capacity: 64GB
- IP Rating: IP67
- Operating Temperature, ℃: -20 ~ +50
- Weight, g: 1300
- Dimension, mm: 390x90x71
Connections and Compatibilities:
- Max. Recoil Power on Rifled Weapon (Eo), Joules: 6000
- Compatible Mount: 30mm Tube
- Safety Class for Laser Rangefinder: Class 1
- Measuring Range, m: 1200, ±1
- Ballistic Calculation: Support
- Gen-2 HD thermal sensor for superior image clarity
- Reality+ image processing for enhanced contrast and detail
- Vision+ system with ocular zoom for distortion-free magnification
- Integrated laser rangefinder (LRF) for precise distance measurements
- Ballistic calculation for improved shooting accuracy
- Recoil-activated video recording
- Shutterless design for silent operation
- Dual-battery system for extended field use
- High-durability aluminum alloy construction
- IP67 water and dust resistance for all-weather performance
- Auto screen shutdown to conserve battery
- Focus adjuster and direct video playback for user convenience
