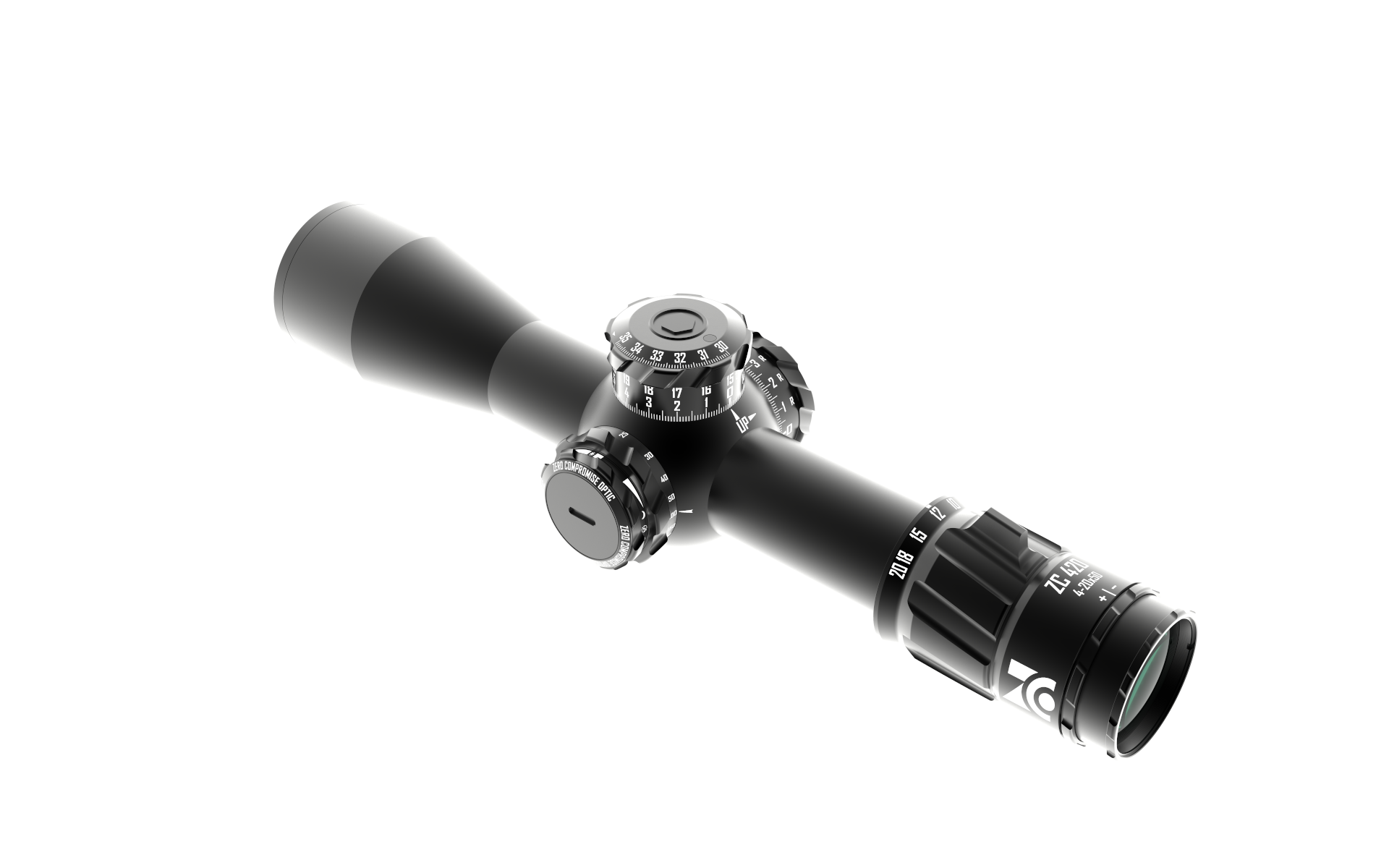

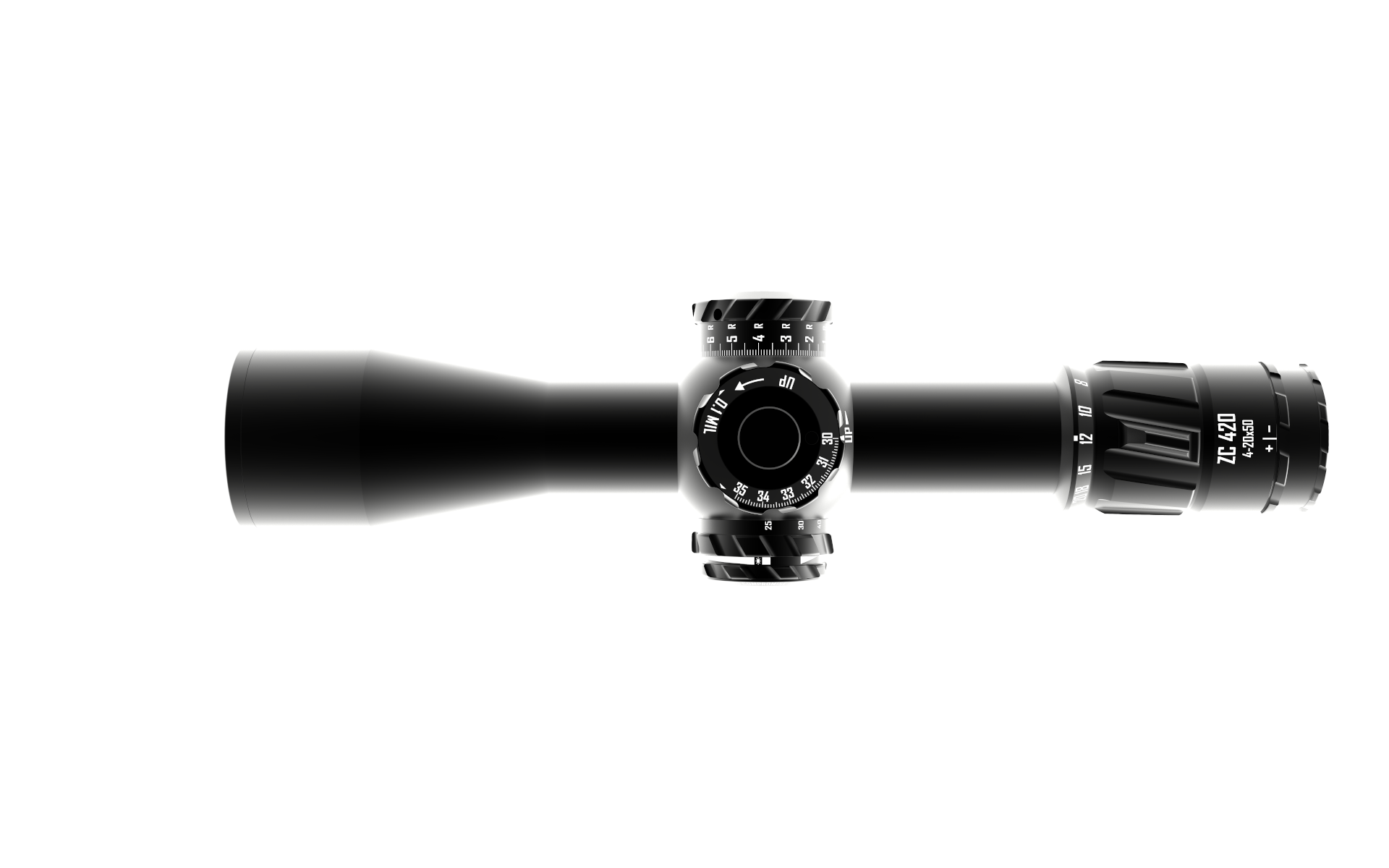

Zero Compromise Optic (ZCO) ZC420 4-20X50 FFP Illuminated MOA Reticle 1/4 MOA Rifle Scope
The Zero Compromise Optic ZC420 combines excellent optical performance with unmatched mechanical precision in the best ultra-short design ever developed.
It combines the highest levels of mechanical precision, unmatched optical performance, and extreme durability in a compact package that can compete with much larger riflescopes. This small riflescope with a length of 325mm (12.8 inches) and a weight of only 986g (34.8oz) is ideal for any application where size and maximum performance are paramount.
The low magnification provides a wide field of view for rapid target acquisition while the mechanical system allows for 35 mils of elevation adjustment for the extreme long-range engagements when required.
Never before has so much performance been combined in such an elegant and compact riflescope.
UNSURPASSED OPTICAL PERFORMANCE
Our optical engineers have set the next standard for clarity, light transmission and resolution in a compact package.
Total light transmission is 92% while maintaining excellent color fidelity matched with best in class resolution for the ultimate viewing experience.
The very best in optical performance results in heightened viewing comfort for all-day use so you can enjoy being behind your scope for extended shooting sessions.
- Magnification (Objective): 4-20
- Objective ∅ (mm): 50
- Main Tube Diameter (mm): 36
- Click Value (MIL): 0.1
- Elevation (MIL): 35
- Elevation (m/100m): 350cm / 100m
- Elevation lock: YES
- Windage (MIL): 20
- Side Adjustment (cm/100m): 200cm / 100m
- Windage lock: YES
- Field of View (ft/100yd): 28.0`- 6.0`
- Field of View (m/100m): 9,3m - 2m / 100m
- Eye Relief (inches): 3.54
- Pupil Distance (mm): 90
- Parallax Compensation (m): 25 - ∞
- Length (inches): 12.8
- Length (mm): 325
- Weight (oz): 34.8
- Weight (g): 986
- Illumination: red | green
- Focal Plane: FIRST
- Light transmission (%): 92
- Diopter: -3 | +2
- Exit Pupil (mm): 10.9 - 2.5
Our Minute of Angle (MOA) reticle design is a normal crosshair style graduated with one MOA increments for a straightforward and clean appearance. This design was specifically developed for shooters competing in all different shooting aspects from F-Class and Extreme Long Range to open country big-game hunting.
Along the horizontal, every even number MOA hash mark is longer than the rest extending above and below the horizontal crosshair while the odd number MOA increments only extend a short distance below. This simple arrangement allows you to keep track of your wind hold very easily. Holding between hash marks for every half MOA is extremely simple and keeps the reticle design as uncluttered as possible yet highly effective.
The vertical crosshair extends down to 42 MOA for those ELR type shots that need that much elevation hold in combination with the turret adjustment. Again, the even number hash marks are longer than the rest and extend left and right of the vertical by one MOA to each side. The odd MOA increments are shorter and only extend one-half MOA to each side. This keeps the increments easy to distinguish allowing you to easily find the correct hold point while providing a visually ”balanced“ reticle design.
Our floating dot is sized at 0.124 MOA diameter for an ultra precise hold on the target. Wind and elevation hold numbers are given every 6 MOA to reduce clutter while still providing rapid counting when needed.
This new design from ZCO will appeal to an extremely wide audience of shooters around the world for its simplicity, clean look, yet versatile capability.
- Zero Compromise Optic (ZCO) ZC420 4-20X50 IR FFP Mil/MIL MPCT1 Rifle Scope
Manufacturer's Life Time Transferable Warranty
All ZCO products are handcrafted with the utmost care and undergo numerous tests as well as inspections prior to shipment.
In the highly unlikely event that a problem occurs with your ZCO riflescope, we offer a transferable lifetime warranty that covers mechanical and optical defects due to materials or workmanship under normal use for the life of the riflescope.
At our discretion, we will either repair or replace (with a product of the same or similar model) a defective product after prior thorough inspection.
Exceptions to this warranty include intentional misuse or abuse, unauthorized alterations or repairs, modification or destruction of the serial number, improper assembly, negligence in handling the product, and damage by fire, flood, or other natural disaster.
The electronic components built into this product are covered by a limited warranty of 2 years from the date of purchase. This includes defects due to materials or workmanship under normal use.
For ZCO assemblies and ZCO assembly accessories, we offer a warranty period of 90 days from the date of purchase covering mechanical defects due to materials or workmanship under normal use.
At our discretion, we will either repair or replace (with a product of the same or similar model) a defective product after prior thorough inspection.
